Rayo

Rayo

Easy to install and suitable for any environment thanks to its minimal design. The Rayo gives a feeling of natural warmth and spreads it evenly through the transmission of infrared rays. It is mandatory to use a programmable smart plug (not included).

The Rayo is available in signal white and anthracite grey.

Key benefits:

  • Infrared technology
  • Ready for installation and connection

Accessories

Downloads

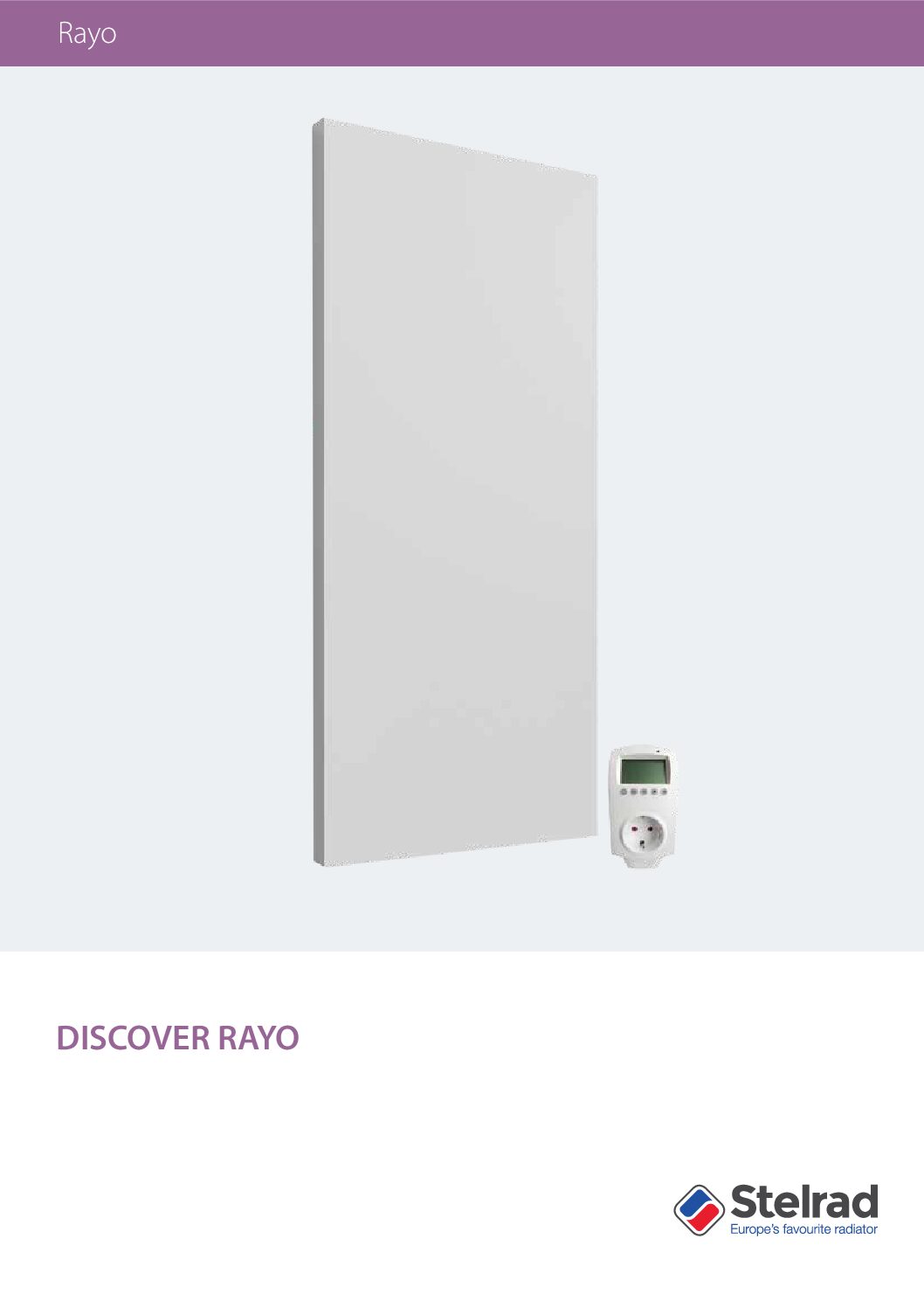

Brochure

PDF Thumbnail

Electric

PDF Size: 2 MB

Download



Atmosphere photo

RAYO-WHITE-AMB

RAYO-WHITE-AMB

Image Size: 4500x4000px

Download
RAYO-ANTHR-AMB

RAYO-ANTHR-AMB

Image Size: 4500x4000px

Download


Product photo

RAYO-ANTHR

RAYO-ANTHR

Image Size: 2000x2000px

Download
RAYO-SV

RAYO-SV

Image Size: 3840x3840px

Download
RAYO-FV

RAYO-FV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

RAYO-EN

Document Size: 18 KB

Download


Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

STR-RAYO

PDF Size: 4 MB

Download

Assembly instructions

RAYO-MOUNTING

RAYO-MOUNTING

Image Size: 1581x1407px

Download


Technical data

The Rayo provides natural, evenly distributed heat thanks to the transmission of infrared rays.

Specification text

Specification text

Product: Electric infrared panel
Pre-installed: 1,2 m insulated cable with plug
Also supplied: Brackets, screws, plugs and manual
Control: The IR-panel is delivered without thermostat. It must be installed with an intelligent third party electric smart plug. The control options of the plug must comply with EcoDesign 2018 (EU Regulation 2015/1188).
Packaging: Every IR-panel is sturdily packaged in high-quality cardboard. The IR-panel’s characteristics are shown on the label: electric power – height – length.
Warranty: 10 years for the IR-panel and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the IR-panel is installed outside the splash area.
Paint process: All IR-panels are degreased, phosphated and powder-coated
Colours: Signal white or anthracite grey
Technical data: Voltage 230V ~50Hz, IP34, Class II
Heights: 1.218 | 1.540 | 1.740 mm
Lengths: 530 | 580 | 630 mm
Depth: 50 mm
Output: 500 | 700 | 1.000 W

Specification text

DOCx Thumbnail

RAYO-EN

Document Size: 18 KB
Download

Type overview

Type overview

Article number Colour Height (mm) Width (mm) Depth (mm) Weight (kg) Power (watt)
7101B1218010530 Traffic white 1.218 530 50 12,00 500
7101B1540010580 Traffic white 1.540 580 50 15,00 700
7101B1740010630 Traffic white 1.740 630 50 19,00 1.000
7101D1218010530 Anthracite grey 1.218 530 50 12,00 500
7101D1540010580 Anthracite grey 1.540 580 50 15,00 700
7101D1740010630 Anthracite grey 1.740 630 50 19,00 1.000

Installation

Installation

Mounting

Power (watt) X (mm) Y (mm)
500 130 980
700 130 1.302
1.000 260 1.502

Manual

Download the manual of your Rayo

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

STR-RAYO

PDF Size: 4 MB
Download
Bathroom Range, Design Range, Electric Range

Gilia Single E

GILIA SINGLE E

The Gilia Single E is an attractive white electric towel radiator that offers timeless elegance and functional energy efficiency with its rounded contours. A perfect choice for bathrooms, the Gilia Single E features a simple and elegant steel tube-on-tube design that provides ample and convenient hanging space for towels.

The round steel tubes are filled with a thermodynamic liquid that is heated using an electric element. This maintenance-free and specially formulated fluid is designed to distribute heat quickly and evenly across the towel radiator, which in turn sends heat into the room via radiation.

Integrated control panel

The digital control with LCD screen is located at the bottom right of the radiator and has numerous functions for efficiency, energy saving and safety.

Key benefits:

  • Simple and intuitive operation
  • Supplied with digital thermostat
  • EcoDesign compliant
  • Ready for installation and connection

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 2 MB

Download



Atmosphere photo

GILIA-SINGLE-E-AMB

GILIA-SINGLE-E-AMB

Image Size: 3200x3200px

Download

Product sheet

PDF Thumbnail

Gilia Single E

PDF Size: 537 KB

Download

Product photo

GILIA-SINGLE-E-SV

GILIA-SINGLE-E-SV

Image Size: 3840x3840px

Download
GILIA-SINGLE-E-FV

GILIA-SINGLE-E-FV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

GILIA-SINGLE-E-EN

Document Size: 19 KB

Download


Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

STR-ELECTRIC-TOWEL

PDF Size: 24 MB

Download

Assembly instructions

GILIA-SINGLE-E-MOUNTING

GILIA-SINGLE-E-MOUNTING

Image Size: 1472x1990px

Download


Technical data

An attractive white electric tubular towel radiator, offering timeless elegance and functional energy efficiency. A perfect choice for bathrooms, the Gilia Single E electric towel radiator features a simple and elegant steel tube on tube design that provides adequate and convenient hanging space for towels.

Specification text

Specification text

Product: Electric vertical round tube-on-tube design radiator
Pre-installed: Prefilled with heating liquid, equipped with a thermostat and a 1,2 m insulated cable with plug.
Also supplied: Brackets, screws, plugs and manual
Control: Operated via integrated thermostat with weekly programming, open window detection, presence detection and boost function.
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: electric power – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated and powder-coated.
Colour: Traffic White
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 230V ~50Hz, IP34, Class II
Heights: 1.195 | 1.523 | 1.810 mm
Number of tubes: 23 | 29 | 36
Lengths: 500 | 600 mm
Depth: 56 mm
Output: 500 | 700 | 1.000 W
Tubes: horizontal, O-section, diameter 22 mm
Collectors: vertical, O-section, diameter 35 mm

Specification text

DOCx Thumbnail

GILIA-SINGLE-E-EN

Document Size: 19 KB
Download

Type overview

Type overview

Article number Colour Height (mm) Width (mm) Depth (mm) Weight (kg) Power (watt)
7001B1195010500 Traffic white 1.195 500 56 15,90 500
7001B1523010500 Traffic white 1.523 500 56 22,90 700
7001B1810010600 Traffic white 1.810 600 56 28,10 1.000

Installation

Installation

Mounting

Manual

Download the manual of your Gilia Single E

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

STR-ELECTRIC-TOWEL

PDF Size: 24 MB
Download
Design Range, Electric Range

Alu Simple Dry

Alu Simple Dry

The Alu Simple Dry is an aluminium radiator with a natural stone heart. Using dry inertia technology, the radiator heats the air in your rooms via a convection process with gentle and continuous heat. This means less energy consumption and faster warm-up times as the internal stone gently adjusts to the desired temperature.

The Alu Simple Dry has a high energy efficiency rating thanks to the natural ability of stone to absorb heat faster and retain and radiate it longer.

The Alu Simple Dry is available in traffic white and anthracite grey.

Integrated control panel

The digital control with LCD screen is located at the top right of the radiator and features numerous functions for efficiency, energy saving and safety. It can also be operated via the included remote control.

Remote control

A portable digital remote control with LCD screen is included, including a bracket for wall mounting.

Key benefits:

  • Simple and intuitive operation
  • Supplied with remote control
  • Dry inertia technology
  • EcoDesign compliant
  • Ready for installation and connection

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 2 MB

Download



Atmosphere photo

ALU-SIMPLE-DRY-WHITE-AMB

ALU-SIMPLE-DRY-WHITE-AMB

Image Size: 5746x3831px

Download
ALU-SIMPLE-DRY-ANTHR-AMB

ALU-SIMPLE-DRY-ANTHR-AMB

Image Size: 5737x3825px

Download

Product sheet

PDF Thumbnail

Alu Simple Dry

PDF Size: 980 KB

Download

Product photo

ALU-SIMPLE-DRY-ANTHR

ALU-SIMPLE-DRY-ANTHR

Image Size: 2000x2000px

Download
ALU-SIMPLE-DRY-TV

ALU-SIMPLE-DRY-TV

Image Size: 3840x3840px

Download
ALU-SIMPLE-DRY-SV

ALU-SIMPLE-DRY-SV

Image Size: 3840x3840px

Download
ALU-SIMPLE-DRY-FV

ALU-SIMPLE-DRY-FV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

ALU-SIMPLE-DRY-EN

Document Size: 18 KB

Download


Manual

PDF Thumbnail

STR-ALU-SIMPLE-DRY

PDF Size: 29 MB

Download
PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download

Assembly instructions

ALU-SIMPLE-DRY-MOUNTING

ALU-SIMPLE-DRY-MOUNTING

Image Size: 1407x1729px

Download


Technical data

The Alu Simple Dry electric radiator is using dry inertia technology, via a process of convection a fast and continuous high heat output is achieved.

Specification text

Specification text

Product: Electric dry inertia radiator
Pre-installed: Thermostat and 1,2 m insulated cable with plug.
Also supplied: Brackets, screws, plugs, manual and remote control.
Control: Operated via an integrated thermostat with weekly programming and open window detection.
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: electric power – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated, primed and powder-coated.
Colours: Traffic white or anthracite grey
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 230V ~50Hz, IPX4, Class II
Height: 580 mm
Lengths: 600 | 840 | 1.080 mm
Depth: 90 mm
Output: 1.000 | 1.500 | 2.000 W

Specification text

DOCx Thumbnail

ALU-SIMPLE-DRY-EN

Document Size: 18 KB
Download

Type overview

Type overview

Article number Colour Height (mm) Width (mm) Depth (mm) Weight (kg) Power (watt)
7153B0580010600 Traffic white 580 600 90 17,70 1.000
7153B0580010840 Traffic white 580 840 90 24,60 1.500
7153B0580011080 Traffic white 580 1.080 90 33,00 2.000
7153D0580010600 Anthracite grey 580 600 90 17,70 1.000
7153D0580010840 Anthracite grey 580 840 90 24,60 1.500
7153D0580011080 Anthracite grey 580 1.080 90 33,00 2.000

Installation

Installation

Mounting

Manual

Download the manual of your Alu Simple Dry

Manual

PDF Thumbnail

STR-ALU-SIMPLE-DRY

PDF Size: 29 MB
Download

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download
Bathroom Range, Design Range, Electric Range

Agata E-VENTO

AGATA E-VENTO

The Agata E-VENTO is a modern electric towel radiator with horizontal flat tubes grouped in 3, with gaps between each segment. It has an exclusive asymmetrical design as the collectors are located on 1 side of the radiator.

The Agata E-VENTO is filled with thermodynamic fluid, which is heated quickly and evenly with the help of an electric element, allowing the radiator in turn to send its heat into the room via radiation. Moreover, the Agata E-VENTO is equipped with an integrated blower that provides as much as 1,000 watts of additional heat.

The Agata E-VENTO is available in traffic white and anthracite grey.

Integrated control panel

The digital control is located at the bottom of the radiator and features numerous functions for efficiency, energy saving and safety. It can also be operated via the included remote control.

Remote control

A portable digital remote control with an LCD screen is included, including a bracket for wall mounting.

Key benefits:

  • Simple and intuitive operation
  • Supplied with remote control
  • 1.000 watt blower for even faster heating
  • EcoDesign compliant
  • Ready for installation and connection

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 2 MB

Download



Atmosphere photo

AGATA-E-VENTO-WHITE-AMB

AGATA-E-VENTO-WHITE-AMB

Image Size: 4500x3000px

Download
AGATA-E-VENTO-ANTHR-AMB

AGATA-E-VENTO-ANTHR-AMB

Image Size: 4500x3000px

Download
AGATA-E-VENTO-AMB

AGATA-E-VENTO-AMB

Image Size: 4500x3000px

Download

Product sheet

PDF Thumbnail

Agata E-VENTO

PDF Size: 820 KB

Download

Product photo

AGATA-E-VENTO-ANTHR

AGATA-E-VENTO-ANTHR

Image Size: 2000x2000px

Download
AGATA-E-VENTO-SV

AGATA-E-VENTO-SV

Image Size: 3840x3840px

Download
AGATA-E-VENTO-FV

AGATA-E-VENTO-FV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

AGATA-E-VENTO-EN

Document Size: 19 KB

Download


Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

STR-ELECTRIC-TOWEL-BLOWER

PDF Size: 7 MB

Download



Technical data

The Agata E-VENTO consists of flat electrical tubes with an integrated blower unit that provides extra heat emission and is characterized by an exclusive asymmetrical design.

Specification text

Specification text

Product: Electric vertical flat tube-on-tube design radiator with blower
Pre-installed: Prefilled with heating liquid, equipped with a thermostat, a 1.000 watt blower and a 1,2 m insulated cable with plug.
Also supplied: Brackets, screws, plugs, manual and remote control
Control: Via integrated thermostat or remote control with weekly programming, open window detection and boost function.
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: electric power – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated, primed and powder-coated.
Colours: Traffic white or anthracite grey
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 230V ~50Hz, IP24, Class II
Heights: 1.203 | 1.528 | 1.852 mm
Number of tubes: 12 | 15 | 18
Length: 600 mm
Depth: 143 mm
Output: 1.500 | 1.700 | 2.000 W
Tubes: horizontal, 70 x 11 mm flat section
Collectors: vertical, O-section, diameter 38 mm

Specification text

DOCx Thumbnail

AGATA-E-VENTO-EN

Document Size: 19 KB
Download

Type overview

Type overview

Article number Colour Height (mm) Width (mm) Depth (mm) Weight (kg) Power (watt)
7051D1203010600 Traffic white 1.203 600 143 20,50 500+1.000
7051D1528010600 Traffic white 1.528 600 143 26,50 700+1.000
7051D1852010600 Traffic white 1.852 600 143 31,50 1.000+1.000
7051F1203010600 Anthracite grey 1.203 600 143 20,50 500+1.000
7051F1528010600 Anthracite grey 1.528 600 143 26,50 700+1.000
7051F1852010600 Anthracite grey 1.852 600 143 31,50 1.000+1.000

Installation

Installation

Mounting

Height (mm) Width (mm) A (mm) B (mm)
1.203 600 410 985
1.528 600 410 1.310
1.852 600 410 1.635

Manual

Download the manual of your Agata E-VENTO

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

STR-ELECTRIC-TOWEL-BLOWER

PDF Size: 7 MB
Download
Standaard Range

Novello

NOVELLO

Enclosed valve radiator with a profiled front

The Novello radiator is fully enclosed with side panels and a decorative grid that both fit seamlessly to the radiator. This finish really enhances the presentation of your living space. Moreover, this radiator is equipped with an adjustable, preset perfitted thermostatic valve insert that regulates the water in the radiator. This radiator therefor always achieves an optimal efficiency.

Why opt for a Stelrad Novello radiator?

  • Horizontal radiator
  • Preset adjustable thermostatic valve insert
  • Profiled front

Accessories

Sleutel voor het demonteren van het zijpaneel

Art. Code: T1105

Afdekking buis voetconsoles T168XTT

Art. Code: T1684

Afdekplaat voetconsole T168XTT

Art. Code: T1683

Voetconsole T168XTT
Voetconsole T1680TT
Stelrad Eclipse thermostatisch ventiel

Art. Code: R4250

Witte kunststof afdekplaat voor voetconsoles

Art. Code: T1633

Set voetconsoles type 10-11 voor hoogtes 700-900

Art. Code: T1538

Set voetconsoles type 10-11 voor hoogtes 300-600

Art. Code: T1537

Aansluithoek ½" om DIN-radiatoren te kunnen vervangen

Art. Code: T2053

Ontluchtingssleutel

Art. Code: T1101

Afvoerslang voor permanente ontluchter (Niet ECO)

Art. Code: T2154

Permanente ontluchter voor Stelrad radiatoren (niet ECO)

Art. Code: T2153

Montagesleutel voor T2150 en T2153

Art. Code: T2151

Gebogen handdoekhouder, wit gepoedercoat
Demontage / montagehaak 1 stuk

Art. Code: T1531

J-consoles voor horizontale Stelrad radiatoren zonder ophangstrippen - 3 stuks
J-consoles voor horizontale Stelrad radiatoren zonder ophangstrippen - 2 stuks
Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1665

Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1663

Vloerconsole zwart type 22-44 montage afgewerkte vloer 2 stuks

Art. Code: T1661

Voetconsole zwart type 20-21 voor montage onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1664

Zwarte stabilisatiestang voor bouwhoogtes vanaf 500 mm

Art. Code: T1666

Aftapnippel

Art. Code: T2114

Voetconsole zwart type 20-21 voor onafgewerkte vloermontage 95-165mm 2 stuks

Art. Code: T1662

Voetconsole wit type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1650

Kv-regelsleutel 8 standen voor ventiel

Art. Code: T1622

Voetconsole wit type 22-44 voor montage onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1653

Thermostaatkop Stelrad - M30 x 1,5 mm

Art. Code: T1233

Witte stabilisatiestang voor radiatoren vanaf > 500 mm

Art. Code: T1656

Voetconsole zwart type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1660

Muurbeugel type 11-33 - 2 stuks

Art. Code: T1643

Montagesjabloon voor montage van omkaste radiatoren met onderaansluiting

Art. Code: T1642

Overbrugging voor gebruik met het montagesjabloon

Art. Code: T1587

Voetconsole wit type 20-21 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1654

Voetconsole wit type 22-44 voor montage op afgewerkte vloer

Art. Code: T1651

Voetconsole wit type 22-44 onafgewerkte vloeropbouw 170-240mm 2 stuks

Art. Code: T1655

Voetconsole wit T20-21 voor montage op onafgewerkte vloer 2 stuks

Art. Code: T1652

Radiatorborstel 115cm

Art. Code: T1131

Verchroomde universele handdoekhouder
Sleutel voor het demonteren van het zijpaneel

Art. Code: T1100

Lakstift 12ml Stelrad wit 9016

Art. Code: T1114

Spuitbus 150ml Stelrad wit 9016

Art. Code: T1110

Bevestigingsring voor zijpanelen van horizontale radiatoren (niet voor Eco)

Art. Code: R3201

Ontluchter ½"

Art. Code: R4102

Veiligheidsklem voor bovenrooster type 21 t/m 44

Art. Code: R3206

Bevestigingsklem voor bovenrooster type 11-44

Art. Code: R3207

Stelrad hitteschild
Heimeier ventiel 1/2" M30x1.5 voorinstelling 8 blauw

Art. Code: R4221

Blindstop ½”

Art. Code: R4101

Veiligheidsklem voor bovenrooster type 11

Art. Code: R3208

Heimeier ventiel 1/2" M30x1.5 voorinstelling 6 zwart

Art. Code: R4220

Heimeier ventiel 1/2" M30x1.5 voorinstelling 5,5 geel

Art. Code: R4216

Heimeier ventiel 1/2" M30x1.5 voorinstelling 2,5 wit

Art. Code: R4218

Heimeier ventiel 1/2" M30x1.5 voorinstelling 4,5 rood

Art. Code: R4219

SET zijpanelen Stelrad horizontale radiatoren
Metalen bovenrooster "Accord" in Stelrad wit 9016
J-consoles voor horizontale Stelrad radiatoren met ophangstrippen - 3 stuks
Haaks onderblok zonder aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2106

Recht onderblok zonder aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2104

Recht onderblok met aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2105

J-consoles voor horizontale Stelrad radiatoren met ophangstrippen - 2 stuks
Haaks onderblok met aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2107

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Eclipse

PDF Size: 1 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download

Technical manual

PDF Thumbnail

STR-TD-EN

PDF Size: 14 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Product sheet

PDF Thumbnail

Novello

PDF Size: 791 KB

Download

Product photo

NOVELLO-TV

NOVELLO-TV

Image Size: 3840x2818px

Download
NOVELLO-SV

NOVELLO-SV

Image Size: 3840x2898px

Download
NOVELLO-FV

NOVELLO-FV

Image Size: 3840x3468px

Download
NOVELLO-BV

NOVELLO-BV

Image Size: 3840x3468px

Download

Specification text

DOCx Thumbnail

NOVELLO-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

NOVELLO-EN

Document Size: 36 KB

Download

Manual

PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download
PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download

Assembly instructions

PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download
PDF Thumbnail

z4385

PDF Size: 604 KB

Download
PDF Thumbnail

Eclipse

PDF Size: 544 KB

Download

Technical details

The Novello radiator is a fully dressed radiator equipped with an integrated adjustable valve insert.

This radiator can be connected either as a valve or as a compact radiator.

Specification text

Specification text

Product: fully encased valve radiator
Finishing: upper grille and side panels
Pre-installed: preset Heimeier 4368 or 4369 valve insert, air vent and blind plugs
Valve insert: The integrated adjustable valve insert (without thermostatic head) is factory-fit on the right side of the radiator, CEN certified, tested in accordance with EN215 and compatible with thermostatic heads M30 x 1,5 mm. The thermostatic valve insert is factory-set in relation to the size of the radiator. This presetting ensures optimum throughput in the radiator. Factory setting for two-pipe systems, also suitable for one-pipe systems (as long as the valve insert is adjusted to position 8).
Also supplied: Monclac brackets with anti-lift (VDI compliant when used in combination with included anti-slide clips), screws, plugs and installation instructions
Connections: 6 x ½” female connection (2 x ½” lateral bottom connection included). Left handed version: type 21, 22 and 33 are reversible, type 11 is available on request.
Lugs: Type 11 is equipped with 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from 1.800 mm
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Quality assurance: NF
Types: 11 | 21 | 22 | 33
Heights: 300 | 400 | 500 | 600 | 700 | 900 mm
Lengths: 400 – 3.000 mm
Depths: 61 | 77 | 100 | 158 mm

Specification text

DOCx Thumbnail

NOVELLO-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height Type 11 Type 21 Type 22 Type 33 Center distance
(mm) (mm)
300 W 509 982 1.349 250
kg 9,31 16,80 25,20
l 1,89 3,70 5,40
m² 2,09 3,51 5,26
n 1,3216 1,3264 1,3137
400 W 676 954 1.245 1.711 350
kg 12,78 19,46 22,87 34,30
l 2,34 4,67 4,67 6,87
m² 2,95 3,37 4,92 7,38
n 1,3117 1,3325 1,3291 1,3169
500 W 833 1.153 1.494 2.056 450
kg 16,24 24,63 28,93 43,40
l 2,8 5,63 5,63 8,33
m² 3,8 4,31 6,33 9,49
n 1,3018 1,3353 1,3319 1,3202
600 W 980 1.345 1.732 2.389 550
kg 19,70 29,80 35,00 52,50
l 3,25 6,6 6,6 9,8
m² 4,66 5,24 7,74 11,61
n 1,2919 1,3381 1,3346 1,3234
700 W 1.117 1.530 1.961 2.712 650
kg 22,90 34,50 40,53 60,77
l 3,77 7,63 7,63 11,37
m² 5,51 6,18 9,15 13,72
n 1,2919 1,3381 1,3385 1,3393
900 W 1.360 1.883 2.395 3.334 850
kg 29,30 43,90 51,60 77,30
l 4,8 9,7 9,7 14,5
m² 7,22 8,05 11,97 17,96
n 1,2919 1,3382 1,3463 1,3712

Calculation Factor per meter length radiator at 75/65/20 °C in accordance with EN442
Characteristic equation: ф = KM x ΔTn

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

NOVELLO-EN

Document Size: 36 KB
Download

Connection possibilities

Connection possibilities

When connecting as a valve radiator:

LEFT RIGHT

When connecting as a compact radiator:

  • the valve insert has to be removed
  • the plastic plugs have to be replaced with brass plugs

* = a reduction in heat output will occur when combining low temperature heating with a high temperature difference between inlet and outlet.

Lugs

Lugs


TYPE 11

L A
400 117
500-1600 150

L A
1800-3000 150

Installation

Installation

TYPE 11 TYPE 21 TYPE 22 TYPE 33

Connection dimensions

L = Length of the radiator
L (mm) 400 500 600 700 800 900 1000 1100 1200
E (mm) 147 197 247 297 347 397 447 497 547
L (mm) 1400 1600 1800 2000 2200 2400 2600 2800 3000
E (mm) 647 747 847 947 1047 1147 1247 1347 1447

Heat output

Calculate your heat emission

excel Thumbnail

NOVELLO-EN

Document Size: 36 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
Standaard Range

Vertex E

VERTEX E

Heat any room quickly and easily with Vertex electric radiators!

The Vertex E is the electric version of our Vertex vertical radiator. It saves space due to its vertical design and only needs a socket to quickly achieve a high heat output.

Main advantages:

  • Simple and intuitive operation
  • Operated by supplied RF thermostat
  • Boost function
  • Open window detection
  • ECO Design compliant
  • Ready for installation and connection
  • Easy pairing with RF Thermostat

Accessories

Downloads

Brochure

PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Electric

PDF Size: 2 MB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

STR-TD-EN

PDF Size: 14 MB

Download

Product sheet

PDF Thumbnail

Vertex E

PDF Size: 579 KB

Download

Product photo

VERTEX-E-TV

VERTEX-E-TV

Image Size: 3840x2947px

Download
VERTEX-E-SV

VERTEX-E-SV

Image Size: 3840x9507px

Download
VERTEX-E-FV

VERTEX-E-FV

Image Size: 2560x4096px

Download
VERTEX-E-BV

VERTEX-E-BV

Image Size: 3840x2947px

Download

Specification text

DOCx Thumbnail

VERTEX-E-EN

Document Size: 19 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

VERT-E-MANUAL-EN

PDF Size: 12 MB

Download

Assembly instructions

PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download

Technical data

The Vertex E is the electric version of our Vertex vertical radiator. It saves space due to its vertical design and only needs a socket to quickly achieve a high heat output.

Specification text

Specification description

Product: electrical vertical panel radiator
Pre-installed: prefilled with heating liquid. RF-receiver mounted including 0,8 m of insulated cable with power plug.
Also supplied: wall brackets, ETA safety screws and plugs, screws, plugs, installation instructions and RF-thermostat
Lugs: no lugs
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: Electric power – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 220-240V ~50Hz, IPX4, Class II
Type: 11
Height: 1.800 mm
Lengths: 500 | 600 | 700 mm
Output: 1.250 | 1.500 | 1.750 watt

Specification text

DOCx Thumbnail

VERTEX-E-EN

Document Size: 19 KB
Download

Type overview

Type overview

Electric power
(watt)		 Length Height Height
Incl. receiver		 Weight Article number
1.250 500 1.800 1.867 30,20 0274A181105
1.500 600 1.800 1.867 35,40 0274A181106
1.750 700 1.800 1.867 40,50 0274A181107

Intelligent Thermostat

Intelligent Thermostat

Temperature setting: Adjustable from + 10 °C to + 30 °C
4 possible operating modes: Auto (programming), Comfort, Eco, Frost protection
General usage: Choice of 2 application types:

Living room
7-day program: Programming switches between Comfort and Eco. One temperature for Comfort and one for Eco can be set, with a maximum adjustable difference of 5 °C between the two.

Super Comfort function: The temperature is increased by 2 °C, adjustable from 20 to 120 minutes. Manually or via weekly program.

Bathroom
7-day program: Programming switches between Comfort and Boost. The boost can be programmed up to twice a day. Boost: The radiator delivers full power for a maximum of 60 minutes or until a maximum set ambient temperature is reached.
Open window detection: Automatic switch to frost protection mode when a significant temperature drop is detected.
Child safety: The control panel can be locked.
Control: Connection to the radiator is quick and easy.
Can control multiple radiators.
Ergonomic: backlit display, adjustment is simple and intuitive.

Manual

Download the manual of your Vertex E

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

VERT-E-MANUAL-EN

PDF Size: 12 MB
Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
Standaard Range

Accord All In

ACCORD ALL IN

Panel radiator with no enclosure

This the mother of all radiators, making it the model for the other radiators in our range. A solid radiator with a very high heat output without a grid or side panels.

Why opt for a Stelrad Accord All In radiator?

  • Horizontal radiator
  • Basic radiator
  • Profiled front
  • Very high heat outputs
  • Supplied with L-brackets, screws, plugs, blind plug and air vent

Accessories

Afdekking buis voetconsoles T168XTT

Art. Code: T1684

Afdekplaat voetconsole T168XTT

Art. Code: T1683

Voetconsole T168XTT
Voetconsole T1680TT
Witte kunststof afdekplaat voor voetconsoles

Art. Code: T1633

Set voetconsoles type 10-11 voor hoogtes 700-900

Art. Code: T1538

Set voetconsoles type 10-11 voor hoogtes 300-600

Art. Code: T1537

Ontluchtingssleutel

Art. Code: T1101

Afvoerslang voor permanente ontluchter (Niet ECO)

Art. Code: T2154

Permanente ontluchter voor Stelrad radiatoren (niet ECO)

Art. Code: T2153

Montagesleutel voor T2150 en T2153

Art. Code: T2151

Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1665

Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1663

Vloerconsole zwart type 22-44 montage afgewerkte vloer 2 stuks

Art. Code: T1661

Voetconsole zwart type 20-21 voor montage onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1664

Zwarte stabilisatiestang voor bouwhoogtes vanaf 500 mm

Art. Code: T1666

Opzetstuk voor losschroeven van kunststofstoppen

Art. Code: T2093

Voetconsole zwart type 20-21 voor onafgewerkte vloermontage 95-165mm 2 stuks

Art. Code: T1662

Voetconsole wit type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1650

Voetconsole wit type 22-44 voor montage onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1653

Witte stabilisatiestang voor radiatoren vanaf > 500 mm

Art. Code: T1656

Voetconsole zwart type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1660

Muurbeugel type 11-33 - 2 stuks

Art. Code: T1643

Voetconsole wit type 20-21 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1654

Voetconsole wit type 22-44 voor montage op afgewerkte vloer

Art. Code: T1651

Voetconsole wit type 22-44 onafgewerkte vloeropbouw 170-240mm 2 stuks

Art. Code: T1655

Voetconsole wit T20-21 voor montage op onafgewerkte vloer 2 stuks

Art. Code: T1652

Radiatorborstel 115cm

Art. Code: T1131

Lakstift 12ml Stelrad wit 9016

Art. Code: T1114

Spuitbus 150ml Stelrad wit 9016

Art. Code: T1110

Ontluchter ½"

Art. Code: R4102

Stelrad hitteschild
Blindstop ½”

Art. Code: R4101

J-consoles voor horizontale Stelrad radiatoren met ophangstrippen - 3 stuks
J-consoles voor horizontale Stelrad radiatoren met ophangstrippen - 2 stuks

Downloads

Brochure

PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

STR-TD-EN

PDF Size: 14 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Product sheet

PDF Thumbnail

Accord & Galva

PDF Size: 773 KB

Download

Product photo

ACCORD-ALL-IN-BV

ACCORD-ALL-IN-BV

Image Size: 3840x3419px

Download
ACCORD-ALL-IN-TV-2

ACCORD-ALL-IN-TV-2

Image Size: 3840x3419px

Download
ACCORD-ALL-IN-TV

ACCORD-ALL-IN-TV

Image Size: 3840x3419px

Download
ACCORD-ALL-IN-SV

ACCORD-ALL-IN-SV

Image Size: 3840x3419px

Download
ACCORD-ALL-IN-FV

ACCORD-ALL-IN-FV

Image Size: 3840x3419px

Download

Specification text

DOCx Thumbnail

ACCORD-ALL-IN-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

ACCORD-ALL-IN-EN

Document Size: 38 KB

Download

Manual

PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download
PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download

Assembly instructions

PDF Thumbnail

z4452

PDF Size: 2 MB

Download

Technical details

The Accord All In radiator is a panel radiator without upper grille or side panels, made from high-quality steel.

A classic icon.

Specification text

Specification text

Product: a classic panel radiator
Finishing: without upper grille or side panels
Also supplied: L-brackets, screws, plugs, blind plug, air vent and installation instructions
Connections: 4 x ½” female connection
Lugs: 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from 1.800 mm
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Quality assurance: NF
Types: 11 | 21 | 22 | 33
Heights: 300 | 400 | 500 | 600 | 700 | 900 mm
Lengths: 400 – 3.000 mm
Depths: 60 | 77 | 100 | 158 mm

Specification text

DOCx Thumbnail

ACCORD-ALL-IN-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height Type 11 Type 21 Type 22 Type 33 Center-to-center distance
(mm) (mm)
300 W 517 1.012 1.418 250
kg 8,38 15,9 23,8
l 1,89 3,7 5,4
m² 2,09 3,51 5,26
n 1,3145 1,3329 1,3155
400 W 687 1.000 1.281 1.805 350
kg 11,68 18,78 21,83 32,67
l 2,34 4,67 4,67 6,87
m² 2,95 3,37 4,92 7,38
n 1,3057 1,3284 1,3321 1,3261
500 W 848 1.210 1.535 2.169 450
kg 14,99 23,84 27,77 41,53
l 2,8 5,63 5,63 8,33
m² 3,8 4,31 6,33 9,49
n 1,2968 1,3278 1,3314 1,3367
600 W 1.000 1.409 1.778 2.514 550
kg 18,3 28,9 33,7 50,4
l 3,25 6,6 6,6 9,8
m² 4,66 5,24 7,74 11,61
n 1,2880 1,3272 1,3306 1,3473
700 W 1.142 1.597 2.011 2.841 650
kg 21,33 33,5 39,13 58,47
l 3,77 7,63 7,63 11,37
m² 5,51 6,18 9,15 13,72
n 1,2889 1,3367 1,3369 1,3545
900 W 1.397 1.941 2.453 3.448 850
kg 27,40 42,70 50,00 74,60
l 4,8 9,7 9,7 14,5
m² 7,22 8,05 11,97 17,96
n 1,2907 1,3357 1,3494 1,3689

Calculation Factor per meter length radiator at 75/65/20 °C in accordance with EN442
Characteristic equation: ф = KM x ΔTn

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

ACCORD-ALL-IN-EN

Document Size: 38 KB
Download

Connection possibilities

Connection possibilities

* = a reduction in heat output will occur when combining low temperature heating with a high temperature difference between inlet and outlet.

Lugs

Lugs

Length 400-1600 Length 1800-3000
TYPE 21-33

L A
400-1600 133

L A
1800-3000 133
TYPE 11

L A
400 117
500-1600 150

L A
1800-3000 150

Installation

Installation

TYPE 11 TYPE 21 TYPE 22 TYPE 33

Connection dimensions

L = Length of the radiator

Heat output

Calculate your heat emission

excel Thumbnail

ACCORD-ALL-IN-EN

Document Size: 38 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
Standaard Range

Compact All In

COMPACT ALL IN

Enclosed panel radiator

With its seamless casing the Stelrad Compact All In gives your home a tidy and finished character. The safe casing has a highly aesthetic and child-friendly finish. This radiator is fully equipped and ready to install.

Why opt for a Stelrad Compact All In radiator?

  • Horizontal radiator
  • Profiled front
  • Child-friendly enclosure
  • Available in colour

Accessories

Sleutel voor het demonteren van het zijpaneel

Art. Code: T1105

Afdekking buis voetconsoles T168XTT

Art. Code: T1684

Afdekplaat voetconsole T168XTT

Art. Code: T1683

Voetconsole T168XTT
Voetconsole T1680TT
Magnetische handdoekhouder in verchroomd metaal
Witte kunststof afdekplaat voor voetconsoles

Art. Code: T1633

Set voetconsoles type 10-11 voor hoogtes 700-900

Art. Code: T1538

Set voetconsoles type 10-11 voor hoogtes 300-600

Art. Code: T1537

Ontluchtingssleutel

Art. Code: T1101

Afvoerslang voor permanente ontluchter (Niet ECO)

Art. Code: T2154

Permanente ontluchter voor Stelrad radiatoren (niet ECO)

Art. Code: T2153

Montagesleutel voor T2150 en T2153

Art. Code: T2151

Gebogen handdoekhouder, wit gepoedercoat
Demontage / montagehaak 1 stuk

Art. Code: T1531

Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1665

Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1663

Vloerconsole zwart type 22-44 montage afgewerkte vloer 2 stuks

Art. Code: T1661

Voetconsole zwart type 20-21 voor montage onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1664

Zwarte stabilisatiestang voor bouwhoogtes vanaf 500 mm

Art. Code: T1666

Opzetstuk voor losschroeven van kunststofstoppen

Art. Code: T2093

Voetconsole zwart type 20-21 voor onafgewerkte vloermontage 95-165mm 2 stuks

Art. Code: T1662

Voetconsole wit type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1650

Voetconsole wit type 22-44 voor montage onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1653

Witte stabilisatiestang voor radiatoren vanaf > 500 mm

Art. Code: T1656

Voetconsole zwart type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1660

Muurbeugel type 11-33 - 2 stuks

Art. Code: T1643

Voetconsole wit type 20-21 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1654

Voetconsole wit type 22-44 voor montage op afgewerkte vloer

Art. Code: T1651

Voetconsole wit type 22-44 onafgewerkte vloeropbouw 170-240mm 2 stuks

Art. Code: T1655

Voetconsole wit T20-21 voor montage op onafgewerkte vloer 2 stuks

Art. Code: T1652

Radiatorborstel 115cm

Art. Code: T1131

Verchroomde universele handdoekhouder
Sleutel voor het demonteren van het zijpaneel

Art. Code: T1100

Lakstift 12ml Stelrad wit 9016

Art. Code: T1114

Spuitbus 150ml Stelrad wit 9016

Art. Code: T1110

Bevestigingsring voor zijpanelen van horizontale radiatoren (niet voor Eco)

Art. Code: R3201

Ontluchter ½"

Art. Code: R4102

Veiligheidsklem voor bovenrooster type 21 t/m 44

Art. Code: R3206

Bevestigingsklem voor bovenrooster type 11-44

Art. Code: R3207

Stelrad hitteschild
Blindstop ½”

Art. Code: R4101

Veiligheidsklem voor bovenrooster type 11

Art. Code: R3208

SET zijpanelen Stelrad horizontale radiatoren
Metalen bovenrooster "Accord" in Stelrad wit 9016
J-consoles voor horizontale Stelrad radiatoren met ophangstrippen - 3 stuks
J-consoles voor horizontale Stelrad radiatoren met ophangstrippen - 2 stuks

Downloads

Brochure

PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

STR-TD-EN

PDF Size: 14 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Product sheet

PDF Thumbnail

Compact All In

PDF Size: 736 KB

Download

Product photo

COMPACT-ALL-IN-T33-TV

COMPACT-ALL-IN-T33-TV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T33-SV

COMPACT-ALL-IN-T33-SV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T33-FV

COMPACT-ALL-IN-T33-FV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T33-BV

COMPACT-ALL-IN-T33-BV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T22-TV

COMPACT-ALL-IN-T22-TV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T22-SV

COMPACT-ALL-IN-T22-SV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T22-FV

COMPACT-ALL-IN-T22-FV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T22-BV

COMPACT-ALL-IN-T22-BV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T11-TV

COMPACT-ALL-IN-T11-TV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T11-SV

COMPACT-ALL-IN-T11-SV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T11-FV

COMPACT-ALL-IN-T11-FV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-T11-BV

COMPACT-ALL-IN-T11-BV

Image Size: 3840x3840px

Download
COMPACT-ALL-IN-TV

COMPACT-ALL-IN-TV

Image Size: 3840x3419px

Download
COMPACT-ALL-IN-SV

COMPACT-ALL-IN-SV

Image Size: 3840x3419px

Download
COMPACT-ALL-IN-GE-TV

COMPACT-ALL-IN-GE-TV

Image Size: 6079x5412px

Download
COMPACT-ALL-IN-GE-SV

COMPACT-ALL-IN-GE-SV

Image Size: 2000x2000px

Download
COMPACT-ALL-IN-FV

COMPACT-ALL-IN-FV

Image Size: 3840x3419px

Download
COMPACT-ALL-IN-BV

COMPACT-ALL-IN-BV

Image Size: 3840x3419px

Download

Specification text

DOCx Thumbnail

COMPACT-ALL-IN-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

COMPACT-ALL-IN-EN

Document Size: 39 KB

Download

Manual

PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download
PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download

Assembly instructions

PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download
PDF Thumbnail

z4379

PDF Size: 2 MB

Download

Technical details

With its seamless casing the Stelrad Compact All In gives your home a tidy and finished character. The safe casing has a highly aesthetic and child-friendly finish. This radiator is fully equipped and ready to install.

Specification text

Specification text

Product: fully encased compact radiator
Finishing: upper grille and side panels
Also supplied: VDI brackets with anti-lift (type Monclac), screws, plugs, air vent, blind plug and installation instructions
Connections: 4 x ½” female connection
Lugs: 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from 1.800 mm
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Quality assurance: NF
Types: 11 | 21 | 22 | 33
Heights: 300 | 400 | 500 | 600 | 700 | 900 mm
Lengths: 400 – 3.000 mm
Depths: 61 | 77 | 100 | 158 mm

Specification text

DOCx Thumbnail

COMPACT-ALL-IN-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height Type 11 Type 21 Type 22 Type 33 Centre distance
(mm) (mm)
300 W 509 982 1.349 250
kg 9,31 16,8 25,2
l 1,89 3,7 5,4
m² 2,09 3,51 5,26
n 1,3216 1,3264 1,3137
400 W 676 954 1.245 1.711 350
kg 12,78 19,46 22,87 34,3
l 2,34 4,67 4,67 6,87
m² 2,95 3,37 4,92 7,38
n 1,3117 1,3325 1,3291 1,3169
500 W 833 1.153 1.494 2.056 450
kg 16,24 24,63 28,93 43,4
l 2,8 5,63 5,63 8,33
m² 3,8 4,31 6,33 9,49
n 1,3018 1,3353 1,3319 1,3202
600 W 980 1.345 1.732 2.389 550
kg 19,7 29,8 35 52,5
l 3,25 6,6 6,6 9,8
m² 4,66 5,24 7,74 11,61
n 1,2919 1,3381 1,3346 1,3234
700 W 1.117 1.530 1.961 2.712 650
kg 22,9 34,5 40,53 60,77
l 3,77 7,63 7,63 11,37
m² 5,51 6,18 9,15 13,72
n 1,2919 1,3381 1,3385 1,3393
900 W 1.360 1.883 2.395 3.334 850
kg 29,30 43,90 51,60 77,30
l 4,8 9,7 9,7 14,5
m² 7,22 8,05 11,97 17,96
n 1,2919 1,3382 1,3463 1,3712

Calculation Factor per meter length radiator at 75/65/20 °C in accordance with EN442
Characteristic equation: ф = KM x ΔTn

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

COMPACT-ALL-IN-EN

Document Size: 39 KB
Download

Connection possibilities

Connection possibilities

* = a reduction in heat output will occur when combining low temperature heating with a high temperature difference between inlet and outlet.

Lugs

Lugs

Length 400-1600 Length 1800-3000
TYPE 21-33

L A
400-1600 133

L A
1800-3000 133
TYPE 11

L A
400 117
500-1600 150

L A
1800-3000 150

Installation

Installation

TYPE 11 TYPE 21 TYPE 22 TYPE 33

Connection dimensions

L = Length of the radiator



Heat output

Calculate your heat emission

excel Thumbnail

COMPACT-ALL-IN-EN

Document Size: 39 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
Standaard Range

Vertex

VERTEX

Vertical panel radiator with center connection

With its vertical assembly the Vertex not only saves space, it is also suitable for use in small spaces. The Vertex takes up a minimum of space and optimally heats the cold air next to large window sections in the kitchen or entrance hall.

Why opt for a Stelrad Vertex radiator?

  • Vertical radiator
  • Profiled front
  • Space-saving
  • Available in colour

Accessories

Set schroeven en pluggen voor verticale radiatoren

Art. Code: R4120

Set montagekoppen voor Vertex consoles type 20-22

Art. Code: R563122

Set montagekoppen voor Vertex consoles type 11

Art. Code: R563111

J-console voor Vertex verticale radiatoren
Bevestigingsklem voor zijpanelen van Vertex verticale radiatoren
Ontluchtingssleutel

Art. Code: T1101

Afvoerslang voor permanente ontluchter (Niet ECO)

Art. Code: T2154

Permanente ontluchter voor Stelrad radiatoren (niet ECO)

Art. Code: T2153

Montagesleutel voor T2150 en T2153

Art. Code: T2151

Opzetstuk voor losschroeven van kunststofstoppen

Art. Code: T2093

Vergrendeling VDI klasse 3 (2 stuks)
Steunconsole voor verticale radiator type 20-22

Art. Code: T1180

Montagesjabloon voor montage van omkaste radiatoren met onderaansluiting

Art. Code: T1642

Overbrugging voor gebruik met het montagesjabloon

Art. Code: T1587

Console-afdekking voor verticale radiatoren
Radiatorborstel 115cm

Art. Code: T1131

Verchroomde universele handdoekhouder
Lakstift 12ml Stelrad wit 9016

Art. Code: T1114

Spuitbus 150ml Stelrad wit 9016

Art. Code: T1110

Ontluchter ½"

Art. Code: R4102

Blindstop ½”

Art. Code: R4101

Set zijpanelen Stelrad Vertex verticale radiatoren
Design ventiel onderblok - haakse uitvoering (links) - wit

Art. Code: T2123

Design ventiel onderblok - haakse uitvoering (rechts) - wit

Art. Code: T2125

Consoles met zijdelingse vergrendeling voor verticale radiatoren type 10 (1 set)
Design ventiel onderblok - haakse uitvoering (links) - chrome

Art. Code: T2124

Design ventiel onderblok - rechte uitvoering - chrome

Art. Code: T2122

Design ventiel onderblok - rechte uitvoering - wit

Art. Code: T2121

Design ventiel onderblok - haakse uitvoering (rechts) - chrome

Art. Code: T2126

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

STR-TD-EN

PDF Size: 14 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Atmosphere photo

VERTEX-AMB

VERTEX-AMB

Image Size: 8640x5636px

Download

Product sheet

PDF Thumbnail

Vertex

PDF Size: 1,021 KB

Download

Product photo

VERTEX-TV

VERTEX-TV

Image Size: 3840x2947px

Download
VERTEX-SV-2

VERTEX-SV-2

Image Size: 1920x3421px

Download
VERTEX-SV

VERTEX-SV

Image Size: 3840x4116px

Download
VERTEX-FV-HDH

VERTEX-FV-HDH

Image Size: 942x2201px

Download
VERTEX-FV

VERTEX-FV

Image Size: 3840x4116px

Download
VERTEX-BV

VERTEX-BV

Image Size: 3840x2947px

Download

Specification text

DOCx Thumbnail

VERTEX-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

VERTEX-EN

Document Size: 34 KB

Download

Manual

PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download
PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download

Assembly instructions

PDF Thumbnail

z4151

PDF Size: 4 MB

Download
PDF Thumbnail

z4247

PDF Size: 2 MB

Download
PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download

Technical details

Do you only have limited space to fit a radiator? The Vertex is the solution. This vertical radiator takes up a minimum of space and optimally heats the cold air next to large window section.

Specification text

Specification text

Product: vertical panel radiator with a centre connection
Finishing: side panels (only for types 11, 20, 21 and 22)
Also supplied: wall brackets, ETA safety screws and plugs, screws, plugs, air vent, blind plugs and installation instructions
Connections: 4 x ½” female connection (centre connection included). Types 20, 21 and 22 can be reversed (front/back), in which case inlet and outlet are also reversed.
Lugs: no lugs
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Quality assurance: NF
Types: 10 | 11 | 20 | 21 | 22
Heights: 1.600 | 1.800 | 2.000 | 2.200 mm
Lengths: 300 | 400 | 500 | 600 | 700 mm
Depths: 47 | 47 | 77 | 77 | 100 mm

Specification text

DOCx Thumbnail

VERTEX-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height Type 10 Type 11 Type 20 Type 21 Type 22
(mm)
1600 W 1.677 2.157 2.592 3.030 3.630
kg 30,9 42,9 63,3 71,1 80,7
l 7,2 7,2 14,4 14,1 14,1
m² 3,67 9,4 7,33 12,66 28,99
n 1,2748 1,3361 1,3202 1,3235 1,3276
1800 W 1.863 2.379 2.865 3.330 3.960
kg 34,5 48,3 71,1 80,1 88,8
l 8,4 8,4 16,2 16,5 16,2
m² 4,13 9,86 8,25 13,58 29,9
n 1,2892 1,3320 1,3135 1,3263 1,3310
2000 W 2.058 2.595 3.120 3.600 4.290
kg 38,1 53,7 78,6 89,1 96,6
l 9,3 9,3 18 18,6 18
m² 4,59 12,15 9,17 16,2 37,74
n 1,3037 1,3278 1,3068 1,3292 1,3344
2200 W 2.265 2.802 3.390 3.870 4.620
kg 42 57,9 87,6 98,4 108,9
l 10,2 10,2 20,1 20,1 20,1
m² 5,04 12,61 10,09 17,11 38,66
n 1,3182 1,3237 1,3000 1,3320 1,3379

Calculation Factor per meter length radiator at 75/65/20 °C in accordance with EN442
Characteristic equation: ф = KM x ΔTn

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

VERTEX-EN

Document Size: 34 KB
Download

Connection possibilities

Connection possibilities

Types 10 | 11 | 20 | 21 | 22

Types 20 | 21 | 22

(*) With a top connection, the radiator must be vented on both the supply and return sides. Top connection allowed provided there is a temperature difference between flow and return of maximum 20°C.

Installation

Installation

TYPE 10 TYPE 11 TYPE 20-21 TYPE 22
TYPE 10 TYPE 11-22

Drillholes for the brackets

H (mm) T10 T11 T20-22
H2 H3 H4 H2 H3 H4 H2 H3 H4
1600 170 270 1500 160 730 1300 70 740 1410
1800 170 270 1700 160 830 1500 70 840 1610
2000 170 270 1900 160 930 1700 70 940 1810
2200 170 270 2100 160 1030 1900 70 1040 2010

Distance between the centre of the radiator and the bracket

L (mm) T10 T11 T20-22
A B B B
300 45 75 50 60
400 95 125 80 110
500 145 175 130 160
600 195 225 180 210
700 245 275 230 260

Heat output

Calculate your heat emission

excel Thumbnail

VERTEX-EN

Document Size: 34 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
8 Connections, Standaard Range

Novello 8

NOVELLO 8

Enclosed valve radiator with 8 connections and a profiled front

The Novello 8 stands out because it is fully dressed with side panels and a top grille. In addition, thanks to the 4 side- and 4 lateral connections, you have a wide range of connectivity options. This makes the Novello 8 extremely assembly-friendly and applicable in just about any situation.

This radiator comes with all parts required to mount the radiator.

Why choose a Stelrad Novello 8 radiator?

  • Universal and flexible
  • Depending on the specific situation you select 1 out of 10 connection possibilities
  • For each new build project
  • Renovate while maintaining existing piping
  • The most comprehensive selection of available sizes
  • Including VDI-brackets (Type Monclac)
  • Preset adjustable thermostatic valve insert
  • Available in over 200 colours

Accessories

Sleutel voor het demonteren van het zijpaneel

Art. Code: T1105

Afdekking buis voetconsoles T168XTT

Art. Code: T1684

Afdekplaat voetconsole T168XTT

Art. Code: T1683

Voetconsole T168XTT
Voetconsole T1680TT
Stelrad Eclipse thermostatisch ventiel

Art. Code: R4250

Witte kunststof afdekplaat voor voetconsoles

Art. Code: T1633

Set voetconsoles type 10-11 voor hoogtes 700-900

Art. Code: T1538

Set voetconsoles type 10-11 voor hoogtes 300-600

Art. Code: T1537

Ontluchtingssleutel

Art. Code: T1101

Afvoerslang voor permanente ontluchter (Niet ECO)

Art. Code: T2154

Permanente ontluchter voor Stelrad radiatoren (niet ECO)

Art. Code: T2153

Montagesleutel voor T2150 en T2153

Art. Code: T2151

Gebogen handdoekhouder, wit gepoedercoat
Demontage / montagehaak 1 stuk

Art. Code: T1531

J-consoles voor horizontale Stelrad radiatoren zonder ophangstrippen - 3 stuks
J-consoles voor horizontale Stelrad radiatoren zonder ophangstrippen - 2 stuks
Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1665

Voetconsole zwart type 22-44 voor montage op onafgewerkte vloer 95-165mm 2 stuks

Art. Code: T1663

Vloerconsole zwart type 22-44 montage afgewerkte vloer 2 stuks

Art. Code: T1661

Voetconsole zwart type 20-21 voor montage onafgewerkte vloer 170-240mm 2 stuks

Art. Code: T1664

Zwarte stabilisatiestang voor bouwhoogtes vanaf 500 mm

Art. Code: T1666

Voetconsole zwart type 20-21 voor onafgewerkte vloermontage 95-165mm 2 stuks

Art. Code: T1662

Thermostaatkop Stelrad - M30 x 1,5 mm

Art. Code: T1233

Witte stabilisatiestang voor radiatoren vanaf > 500 mm

Art. Code: T1656

Voetconsole zwart type 20-21 voor montage op afgewerkte vloer 2 stuks

Art. Code: T1660

Montagesjabloon voor montage van omkaste radiatoren met onderaansluiting

Art. Code: T1642

Overbrugging voor gebruik met het montagesjabloon

Art. Code: T1587

Radiatorborstel 115cm

Art. Code: T1131

Verchroomde universele handdoekhouder
Sleutel voor het demonteren van het zijpaneel

Art. Code: T1100

Lakstift 12ml Stelrad wit 9016

Art. Code: T1114

Spuitbus 150ml Stelrad wit 9016

Art. Code: T1110

Bevestigingsring voor zijpanelen van horizontale radiatoren (niet voor Eco)

Art. Code: R3201

Ontluchter ½"

Art. Code: R4102

Veiligheidsklem voor bovenrooster type 21 t/m 44

Art. Code: R3206

Bevestigingsklem voor bovenrooster type 11-44

Art. Code: R3207

Stelrad hitteschild
Heimeier ventiel 1/2" M30x1.5 voorinstelling 8 blauw

Art. Code: R4221

Blindstop ½”

Art. Code: R4101

Veiligheidsklem voor bovenrooster type 11

Art. Code: R3208

Heimeier ventiel 1/2" M30x1.5 voorinstelling 6 zwart

Art. Code: R4220

Heimeier ventiel 1/2" M30x1.5 voorinstelling 5,5 geel

Art. Code: R4216

Heimeier ventiel 1/2" M30x1.5 voorinstelling 2,5 wit

Art. Code: R4218

Heimeier ventiel 1/2" M30x1.5 voorinstelling 4,5 rood

Art. Code: R4219

Metalen bovenrooster "Elite" in Stelrad 9016 wit
SET zijpanelen Stelrad horizontale radiatoren
Haaks onderblok zonder aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2106

Recht onderblok zonder aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2104

Recht onderblok met aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2105

Haaks onderblok met aftap voor horizontale radiatoren met geïntegreerd ventiel

Art. Code: T2107

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Eclipse

PDF Size: 1 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

8 Connections

PDF Size: 1 MB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

STR-TD-EN

PDF Size: 14 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Atmosphere photo

Image Size: 4860x2780px

Download

Product sheet

PDF Thumbnail

Novello 8

PDF Size: 996 KB

Download

Product photo

NOVELLO-8-T33-TV

NOVELLO-8-T33-TV

Image Size: 3840x3840px

Download
NOVELLO-8-T33-SV

NOVELLO-8-T33-SV

Image Size: 3840x3840px

Download
NOVELLO-8-T33-FV

NOVELLO-8-T33-FV

Image Size: 3840x3840px

Download
NOVELLO-8-T33-BV

NOVELLO-8-T33-BV

Image Size: 3840x3840px

Download
NOVELLO-8-T22-TV

NOVELLO-8-T22-TV

Image Size: 3840x3840px

Download
NOVELLO-8-T22-SV

NOVELLO-8-T22-SV

Image Size: 3840x3840px

Download
NOVELLO-8-T22-FV

NOVELLO-8-T22-FV

Image Size: 3840x3840px

Download
NOVELLO-8-T22-BV

NOVELLO-8-T22-BV

Image Size: 3840x3840px

Download
NOVELLO-8-T21-TV

NOVELLO-8-T21-TV

Image Size: 3840x3840px

Download
NOVELLO-8-T21-SV

NOVELLO-8-T21-SV

Image Size: 3840x3840px

Download
NOVELLO-8-T21-FV

NOVELLO-8-T21-FV

Image Size: 3840x3840px

Download
NOVELLO-8-T21-BV

NOVELLO-8-T21-BV

Image Size: 3840x3840px

Download
NOVELLO-8-T11-TV

NOVELLO-8-T11-TV

Image Size: 3840x3840px

Download
NOVELLO-8-T11-SV

NOVELLO-8-T11-SV

Image Size: 3840x3840px

Download
NOVELLO-8-T11-FV

NOVELLO-8-T11-FV

Image Size: 3840x3840px

Download
NOVELLO-8-T11-BV

NOVELLO-8-T11-BV

Image Size: 3840x3840px

Download
NOVELLO-8-SV

NOVELLO-8-SV

Image Size: 3840x3470px

Download
NOVELLO-8-FV

NOVELLO-8-FV

Image Size: 3840x3470px

Download
NOVELLO-8-BV

NOVELLO-8-BV

Image Size: 3840x3468px

Download
NOVELLO-8-TV

NOVELLO-8-TV

Image Size: 3840x2818px

Download

Specification text

DOCx Thumbnail

NOVELLO-8-EN

Document Size: 19 KB

Download

Calculate your heat emission

excel Thumbnail

NOVELLO-8-EN

Document Size: 37 KB

Download

Manual

PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download
PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download

Assembly instructions

PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download
PDF Thumbnail

z4454

PDF Size: 9 MB

Download
PDF Thumbnail

Eclipse

PDF Size: 544 KB

Download

Technical details

The Novello 8 radiator is a fully encased radiator equipped with an integrated adjustable valve insert. Furthermore you have, thanks to the 4 side- and 4 bottom connections, a variety of connection possibilities. This makes the Novello 8 easy to install and applicable in about every situation. In addition, it offers a uniform wall distance of 65 mm for all types at the center connection.

Specification text

Specification text

Product: the fully encased valve radiator with 8 connections
Finishing: upper grille and side panels
Pre-installed: preset Heimeier 4368 or 4369 valve insert, air vent and blind plugs
Valve insert: The integrated adjustable valve insert (without thermostatic head) is factory-fit on the right side of the radiator, CEN certified, tested in accordance with EN215 and compatible with thermostatic heads M30 x 1,5 mm. The thermostatic valve insert is factory-set in relation to the size of the radiator. This presetting ensures optimum throughput in the radiator. Factory setting for two-pipe systems, also suitable for one-pipe systems (as long as the valve insert is adjusted to position 8).
Also supplied: Monclac brackets with anti-lift (VDI compliant when used in combination with included anti-slide clips), screws, plugs and installation instructions
Connections: 4 x ¾” male Eurocone bottom connection (2 x centre and 2 x lateral)and 4 x ½” female side  connection. Uniform wall distance of 65 mm for all types at the center connection. Left handed version: type 21, 22 and 33 are reversible. Reversing types 22 or 33 will modify the center to wall distance of 65 mm.
Lugs: Type 11 is equipped with 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from
1.800 mm
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Quality assurance: NF
Types: 11 | 21 | 22 | 33
Heights: 300 | 400 | 500 | 600 | 700 | 900 mm
Lengths: 400 – 3.000 mm
Depths: 61 | 77 | 100 | 158 mm

Specification text

DOCx Thumbnail

NOVELLO-8-EN

Document Size: 19 KB
Download

Type overview

Heat Output & Dimensions

Heat outputs and dimensions

Calculate your heat emission

excel Thumbnail

NOVELLO-8-EN

Document Size: 37 KB
Download

Connection possibilities

Connection possibilities

When connecting as a valve radiator:

LEFT (T21, 22, 33) RIGHT (T11, 21, 22, 33)

When connecting as a compact radiator:

  • the valve insert has to be removed

* = a reduction in heat output will occur when combining low temperature heating with a high temperature difference between inlet and outlet.

Lugs

Lugs

TYPE 11

L A
400 117
500-1600 150

L A
1800-3000 150

Installation

Installation

TYPE 11 TYPE 21 TYPE 22 TYPE 33

* only with central connection

Reversed installation

TYPE 22 TYPE 33

* only with central connection

Connection dimensions

L = Length of the radiator

Heat output

Calculate your heat emission

excel Thumbnail

NOVELLO-8-EN

Document Size: 37 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
