PLANAR ECO
Horizontal decorative radiator with a flat front
The Planar ECO radiator unites design with our serial flow technology (water flows first through the front panel) and is perfectly suited for heating systems that work with low operating temperatures. This ECO technology results in high energy efficiency, maximum radiation, faster heating rate and less waste of energy. The combination of this technology with the flat front, a design upper grille and side panels allows you to enjoy our green heat technology with style and luxury.
Why opt for a Stelrad Planar ECO radiator?
- ECO technology inside
- Decorative design
- Flat front
- Available in colour
Accessories
Art. Code: T1684
Art. Code: T1683
Art. Code: R4250
Art. Code: T1633
Art. Code: T1538
Art. Code: T1537
Art. Code: T1101
Art. Code: T2153
Art. Code: T2152
Art. Code: T2151
Art. Code: T2150
Art. Code: T1531
Art. Code: T1665
Art. Code: T1663
Art. Code: T1661
Art. Code: T1664
Art. Code: T2130
Art. Code: T1666
Art. Code: T2114
Art. Code: T1662
Art. Code: T1650
Art. Code: T1622
Art. Code: T1653
Art. Code: T1233
Art. Code: T1656
Art. Code: T1660
Art. Code: T1643
Art. Code: T1642
Art. Code: T1587
Art. Code: T1654
Art. Code: T1651
Art. Code: T1652
Art. Code: T1131
Art. Code: T1114
Art. Code: T1110
Art. Code: R3201
Art. Code: R4102
Art. Code: R3206
Art. Code: R3217
Art. Code: R3207
Art. Code: R4221
Art. Code: R4101
Art. Code: R3208
Art. Code: R4220
Art. Code: R4216
Art. Code: R4218
Art. Code: R4219
Art. Code: T2106
Art. Code: T2104
Art. Code: T2105
Art. Code: T2107
Downloads
Brochure
Technical handbook
Product sheet
Product photo
Specification text
Calculate your heat emission
Manual
Assembly instructions
T2130 Montagevoorbeelden – exemples de montage – Montagebeispiele – mounting examples
PDF Size: 696 KB
Download
Technical details
The Planar ECO radiator unites design with our serial flow technology (water flows first through the front panel) and is perfectly suited for heating systems that work with low operating temperatures.
This ECO technology results in high energy efficiency, maximum radiation, faster heating rate and less waste of energy. The combination of this technology with the flat front, a design upper grille and side panels allows you to enjoy our green heat technology in style and luxury.
Specification text
Specification text
| Product: | decorative Stelrad ECO valve radiator ideally suited for low-temperatures heating system and equipped with our serial flow technology, both a centre and lateral bottom connection, a preset valve insert (which can be fitted on the left or right side of the radiator) and with a decorative flat front |
| Finishing: | decorative flat front, upper grille and side panels |
| Pre-installed: | preset Heimeier 4368 or 4369 valve insert, ECO air vent and blind plugs |
| Valve insert: | The integrated adjustable valve insert (without thermostatic head) is factory-fit on the right side of the radiator, CEN certified, tested in accordance with EN215 and compatible with thermostatic heads M30 x 1,5 mm. The valve insert can also be fitted on the left side of the radiator. The thermostatic valve insert is factory-set in relation to the size of the radiator. This presetting ensures optimum throughput in the radiator. Factory setting for two-pipe systems, also suitable for one-pipe systems (as long as the valve insert is adjusted to position 8). |
| Also supplied: | VDI brackets with anti-lift (type Monclac), screws, plugs and installation instructions |
| Connections: | 2 x ¾” male eurocone centre connection and 2 x ½” female lateral bottom connection |
| Lugs: | 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from 1.800 mm |
| Packaging: | Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length. |
| Warranty: | 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met. |
| Paint process: | All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard. |
| Colours: | Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible |
| Max. operating pressure: | 10 bar (tested to 13 bar) |
| Max. operating temperature: | 110 °C |
| Conformity: | in accordance with EN442 |
| Types: | 11 | 21 | 22 | 33 |
| Heights: | 300 | 400 | 500 | 600 | 700 | 900 mm |
| Lengths: | 400 – 3.000 mm |
| Depths: | 63 | 79 | 102 | 160 mm |
Specification text
PLANAR-ECO-EN
Document Size: 18 KB
Download
Type overview
Heat Output & Dimensions
Heat output and dimensions
Calculate your heat emission
PLANAR-ECO-EN
Document Size: 38 KB
Download
Connection possibilities
Connection possibilities
| LEFT | RIGHT |
|
TYPE 21-33 |
|
 |
 |
|
TYPE 11 |
|
 |
 |

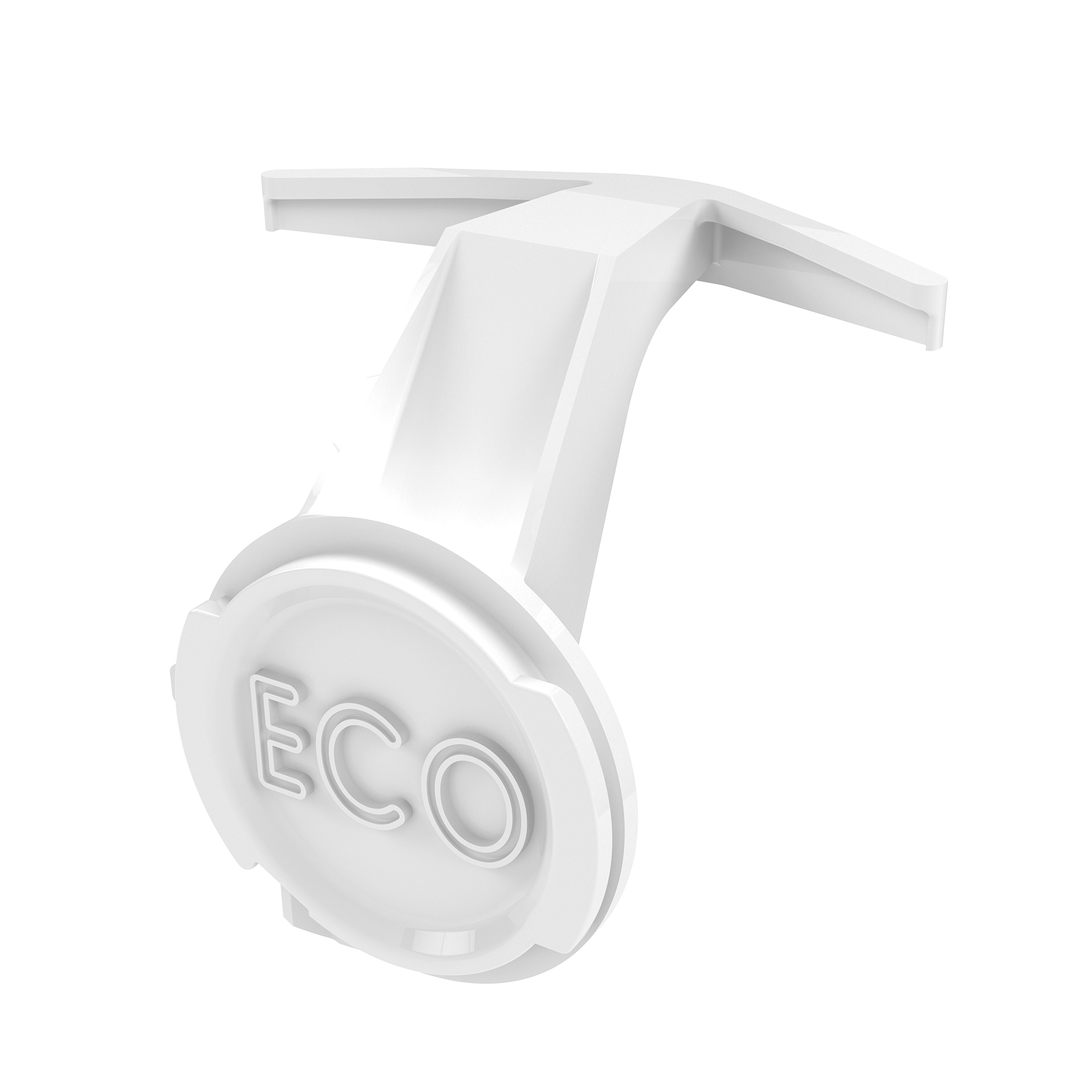

Important notice: The green ECO air vent is essential for the proper working of the radiator and cannot be replaced by a traditional air vent as the radiator will keep on heating.
