DAHLIA
Traditional bathroom radiator
The Stelrad Dahlia is a traditional bathroom radiator with straight, round tubes to retain the traditional and timeless character of your bathroom. The Dahlia can also be used as a partitioning element to help you structure the space according to your needs. Also available with a center connection.
Why opt for a Stelrad Dahlia radiator?
- Bathroom radiator
- Straight, round tubes
- Can be used as a partitioning element
- Available with a centre connection
- Available in different colours
Accessories
Art. Code: T2065
Art. Code: T2064
Art. Code: T1101
Art. Code: T2154
Art. Code: T2153
Art. Code: T2151
Art. Code: T2095
Art. Code: T2082
Art. Code: T2096

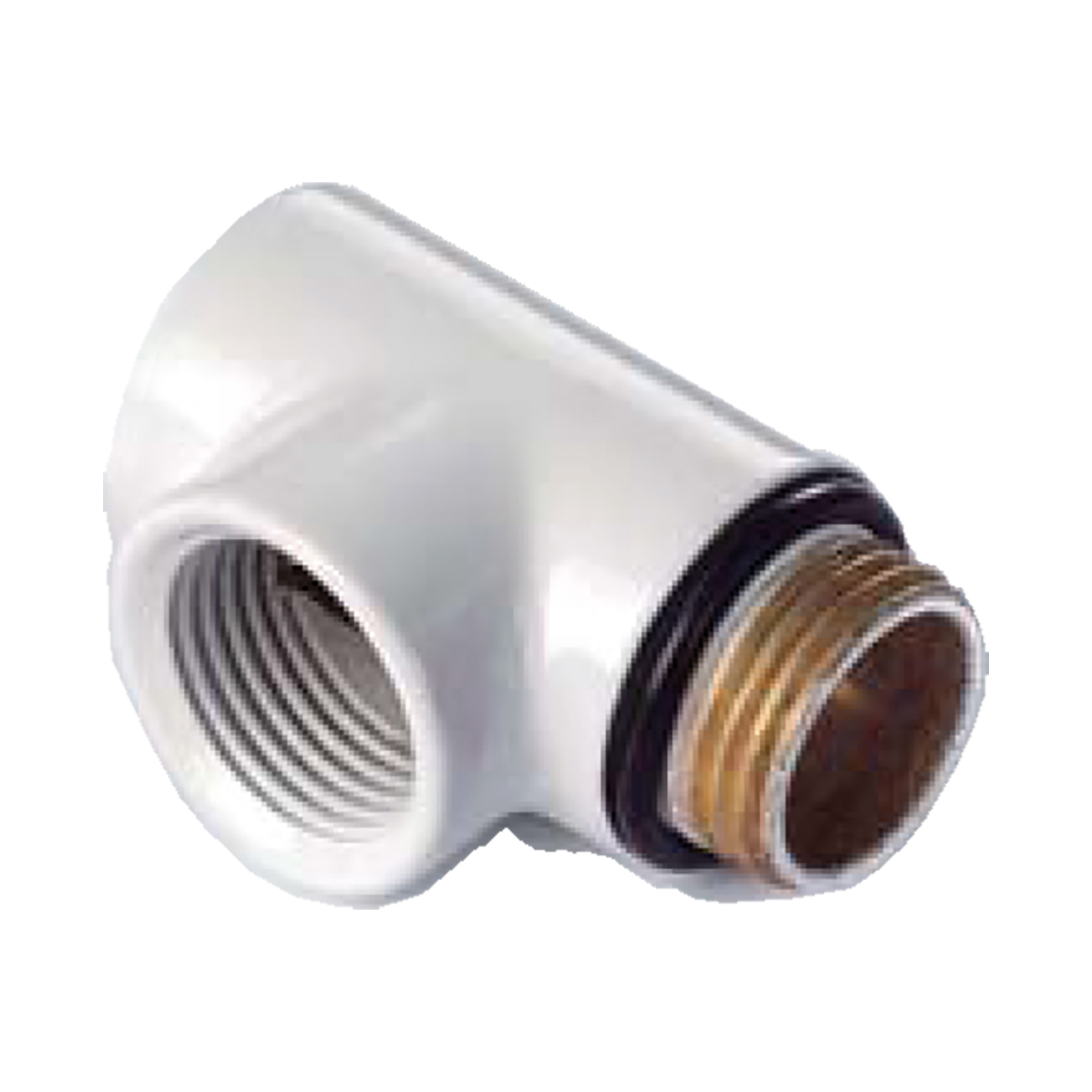

Art. Code: T2085
Art. Code: T2084
Art. Code: T2094
Art. Code: T2028
Art. Code: T1630
Art. Code: T1131
Art. Code: T1114
Art. Code: T1110
Art. Code: R4102
Art. Code: R4101
Downloads
Brochure
Technical handbook
Atmosphere photo
Product sheet
Product photo
Specification text
Calculate your heat emission
Assembly instructions
Technical details
The Dahlia is a traditional bathroom radiator that retains the timeless character of the bathroom with its simplicity and symmetry of straight, round tubes and D-shaped collectors. This radiator can also be used as a partition wall to create separate areas. Also available with a centre connection.
Specification text
Specification text
| Product: | the classic bathroom radiator, also available with a centre connection |
| Also supplied: | wall brackets, screws, plugs, air vent, blind plugs and installation instructions |
| Connections: | 4 x ½” female connection (6 x ½” if with centre connection) |
| Packaging: | Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length. |
| Warranty: | 10 years, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area. |
| Paint process: | All radiators are degreased, phosphated and powder-coated in Stelrad white 9016 as standard. |
| Colours: | Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible |
| Max. operating pressure: | 10 bar (tested to 13 bar) |
| Max. operating temperature: | 95 °C |
| Conformity: | in accordance with EN442 |
| Heights: | 775 | 1.181 | 1.411 | 1.763 | 1.993 mm |
| Number of tubes: | 16 | 24 | 28 | 36 | 40 |
| Lengths: | 400 | 450 | 495 | 585 | 737 mm |
| Tubes: | horizontal, O-section, diameter 22 mm |
| Collector: | vertical, D-section |
Specification text
DAHLIA-EN
Document Size: 18 KB
Download
Heat Output & Dimensions
Heat output and dimensions
Calculate your heat emission
DAHLIA-EN
Document Size: 34 KB
Download
Type overview
Type overview
| Length | 400 mm | 450 mm | 495 mm | 585 mm | 737 mm | |
|---|---|---|---|---|---|---|
| Height | ||||||
| 775 mm | W | 367 | 425 | 520 | ||
| kg | 5,40 | 6,10 | 7,20 | |||
| l | 3,6 | 4,00 | 4,7 | |||
| m² | 0,64 | 0,74 | 0,91 | |||
| n | 1,2455 | 1,2484 | 1,2532 | |||
| 1181 mm | W | 445 | 496 | 541 | 627 | 768 |
| kg | 6,80 | 7,43 | 8,00 | 9,10 | 10,80 | |
| l | 4,65 | 5,04 | 5,40 | 6,00 | 7,1 | |
| m² | 0,81 | 0,90 | 0,97 | 1,12 | 1,37 | |
| n | 1,2563 | 1,2571 | 1,2578 | 1,2547 | 1,2495 | |
| 1411 mm | W | 529 | 590 | 644 | 746 | 914 |
| kg | 7,65 | 8,68 | 9,40 | 10,70 | 12,70 | |
| l | 5,52 | 5,90 | 6,40 | 7,20 | 8,50 | |
| m² | 0,96 | 1,05 | 1,14 | 1,31 | 1,61 | |
| n | 1,2543 | 1,2588 | 1,2627 | 1,2596 | 1,2542 | |
| 1763 mm | W | 807 | 934 | 1.145 | ||
| kg | 11,90 | 13,60 | 16,10 | |||
| l | 8,00 | 9,00 | 10,60 | |||
| m² | 1,45 | 1,68 | 2,06 | |||
| n | 1,2703 | 1,2670 | 1,2614 | |||
| 1993 mm | W | 918 | 1.064 | 1.303 | ||
| kg | 13,40 | 15,20 | 18,00 | |||
| l | 9,20 | 10,30 | 12,30 | |||
| m² | 1,62 | 1,87 | 2,29 | |||
| n | 1,2455 | 1,2419 | 1,2359 |
Connection possibilities
Connection possibilities
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Installation
Installation
 |
Drillholes for the brackets
| RH | H1 | H2 |
| 775 | 102 | 582 |
| 1181 | 102 | 988 |
| 1411 | 102 | 1218 |
| 1763 | 102 | 1570 |
| 1993 | 102 | 1800 |
Centre and wall distances
| RL | A | F | CW | FW |
| 400 | 360 | 225 | 70-85 | 85-100 |
| 450 | 410 | 275 | 70-85 | 85-100 |
| 495 | 455 | 320 | 70-85 | 85-100 |
| 585 | 545 | 410 | 70-85 | 85-100 |
| 737 | 697 | 560 | 70-85 | 85-100 |
Heat output
Calculate your heat emission
Choose your colour
Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.
 |
 |
 |
 |
 |
 |
 |
| NT110 Papyrus white |
NT120 Pearl white |
NT130 Champagne |
NT140 Beige |
NT160 Pebble grey |
NT170 Quartz grey |
NT180 Soft black |
 |
 |
 |
 |
 |
 |
 |
| ML110 Dove grey |
ML120 Titanium grey |
ML134 Blue grey |
ML140 Granite |
ML150 Cappuccino |
ML160 Terra brown |
ML170 Graphite black |
 |
 |
 |
 |
 |
 |
 |
| SN110 Cream white |
SN120 Cream |
SN130 Mocca |
SN140 Bordeaux |
SN150 Sepia |
SN160 Pale blue |
SN170 Black |
 |
 |
 |
 |
 |
 |
 |
| A1004 Golden yellow |
A2003 Pastel orange |
A3002 Carmine red |
A5002 Ultramarine blue |
A6018 Yellow green |
A7001 Silver grey |
A7011 Iron grey |
 |
 |
 |
 |
 |
 |
 |
| A7016 Antracite grey |
A7030 Stone grey |
A7035 Light grey |
A8017 Chocolate brown |
A9003 Signal white |
A9005 Jet black |
A9010 Pure white |
The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only.
