Rayo

Rayo

Easy to install and suitable for any environment thanks to its minimal design. The Rayo gives a feeling of natural warmth and spreads it evenly through the transmission of infrared rays. It is mandatory to use the included programmable smart plug.

The Rayo is available in signal white and anthracite grey.

Key benefits:

  • Infrared technology
  • Ready for installation and connection
  • EcoDesign compliant

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 18 MB

Download



Atmosphere photo

RAYO-WHITE-AMB

RAYO-WHITE-AMB

Image Size: 4500x4000px

Download
RAYO-ANTHR-AMB

RAYO-ANTHR-AMB

Image Size: 4500x4000px

Download


Product photo

RAYO-ANTHR

RAYO-ANTHR

Image Size: 2000x2000px

Download
RAYO-SV

RAYO-SV

Image Size: 3840x3840px

Download
RAYO-FV

RAYO-FV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

RAYO-EN

Document Size: 18 KB

Download


Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Smart-plug-manual

PDF Size: 18 MB

Download
PDF Thumbnail

STR-RAYO

PDF Size: 4 MB

Download

Assembly instructions

RAYO-MOUNTING

RAYO-MOUNTING

Image Size: 1581x1407px

Download


Technical data

The Rayo provides natural, evenly distributed heat thanks to the transmission of infrared rays.

Specification text

Specification text

Product: Electric infrared panel
Pre-installed: 1,2 m insulated cable with plug
Also supplied: Brackets, screws, plugs and manual
Control: Operated via the supplied digital smart plug featuring weekly programming and open-window detection, compliant with EcoDesign 2025 (EU Regulation 2024/1103).
Packaging: Every IR-panel is sturdily packaged in high-quality cardboard. The IR-panel’s characteristics are shown on the label: electric power – height – length.
Warranty: 10 years for the IR-panel and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the IR-panel is installed outside the splash area.
Paint process: All IR-panels are degreased, phosphated and powder-coated
Colours: Signal white or anthracite grey
Technical data: Voltage 230V ~50Hz, IP34, Class II
Heights: 1.218 | 1.540 | 1.740 mm
Lengths: 530 | 580 | 630 mm
Depth: 50 mm
Output: 500 | 700 | 1.000 W

Specification text

DOCx Thumbnail

RAYO-EN

Document Size: 18 KB
Download

Type overview

Type overview

Article number Colour Height (mm) Width (mm) Depth (mm) Weight (kg) Power (watt)
7101B1218010530 Traffic white 1.218 530 50 12,00 500
7101B1540010580 Traffic white 1.540 580 50 15,00 700
7101B1740010630 Traffic white 1.740 630 50 19,00 1.000
7101D1218010530 Anthracite grey 1.218 530 50 12,00 500
7101D1540010580 Anthracite grey 1.540 580 50 15,00 700
7101D1740010630 Anthracite grey 1.740 630 50 19,00 1.000

Installation

Installation

Mounting

Power (watt) X (mm) Y (mm)
500 130 980
700 130 1.302
1.000 260 1.502

Manual

Download the manual of your Rayo

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

Smart-plug-manual

PDF Size: 18 MB
Download

PDF Thumbnail

STR-RAYO

PDF Size: 4 MB
Download

D202202

D202202

Download
Bathroom Range, Design Range, Electric Range

Almada E-VENTO

ALMADA E-VENTO

The Almada E-VENTO is a modern electric towel radiator with horizontal flat tubes, with gaps between segments. The Almada E-VENTO combines good looks with exceptional heating efficiency.

The Almada E-VENTO is filled with thermodynamic fluid, which is heated quickly and evenly with the help of an electric element, allowing the radiator in turn to send its heat into the room via radiation. Moreover, the Almada E-VENTO is equipped with an integrated blower that provides as much as 1.000 watts of additional heat.

The Almada E-VENTO is available in traffic white and anthracite grey.

Integrated control panel

The digital control is located at the bottom of the radiator and features numerous functions for efficiency, energy saving and safety. It can also be operated via the included remote control.

Remote control

A portable digital remote control with an LCD screen is included, including a bracket for wall mounting.

Key benefits:

  • Simple and intuitive operation
  • Supplied with remote control
  • 1.000 watt blower for even faster heating
  • EcoDesign compliant
  • Ready for installation and connection

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 18 MB

Download



Atmosphere photo

ALMADA-E-VENTO-WHITE-AMB

ALMADA-E-VENTO-WHITE-AMB

Image Size: 6000x4000px

Download
ALMADA-E-VENTO-ANTHR-AMB

ALMADA-E-VENTO-ANTHR-AMB

Image Size: 4500x3000px

Download

Product sheet

PDF Thumbnail

Almada E-VENTO

PDF Size: 835 KB

Download

Product photo

ALMADA-E-VENTO-ANTHR

ALMADA-E-VENTO-ANTHR

Image Size: 2000x2000px

Download
ALMADA-E-VENTO-SV

ALMADA-E-VENTO-SV

Image Size: 3840x3840px

Download
ALMADA-E-VENTO-FV

ALMADA-E-VENTO-FV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

ALMADA-E-VENTO-EN

Document Size: 19 KB

Download


Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

STR-ELECTRIC-TOWEL-BLOWER

PDF Size: 7 MB

Download



Technical data

The Almada E-VENTO combines good looks with exceptional heating efficiency with an integrated blower unit that provides extra heat emission.

Specification text

Specification text

Product: Electric vertical flat tube-on-tube design radiator with blower
Pre-installed: Prefilled with heating liquid, equipped with a thermostat, a 1.000 watt blower and a 1,2 m insulated cable with plug.
Also supplied: Brackets, screws, plugs, manual and remote control
Control: Via integrated thermostat or remote control with weekly programming, open window detection and boost function.
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: electric power – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated, primed and powder-coated.
Colours: Traffic white or anthracite grey
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 230V ~50Hz, IP24, Class II
Heights: 1.094| 1.422 | 1.730 mm
Number of tubes: 10 | 14 | 17
Length: 550 mm
Depth: 143 mm
Output: 1.500 | 1.700 | 2.000 W
Tubes: horizontal, 70 x 11 mm flat section
Collectors: vertical, O-section, diameter 38 mm

Specification text

DOCx Thumbnail

ALMADA-E-VENTO-EN

Document Size: 19 KB
Download

Type overview

Type overview

Article number Colour Height (mm) Width (mm) Depth (mm) Weight (kg) Power (watt)
7004D1094010550 Traffic white 1.094 550 143 22,40 500+1.000
7004D1422010550 Traffic white 1.422 550 143 27,00 700+1.000
7004D1730010550 Traffic white 1.730 550 143 33,00 1.000+1.000
7004F1094010550 Anthracite grey 1.094 550 143 22,40 500+1.000
7004F1422010550 Anthracite grey 1.422 550 143 27,00 700+1.000
7004F1730010550 Anthracite grey 1.730 550 143 33,00 1.000+1.000

Installation

Installation

Mounting

Height (mm) Width (mm) A (mm) B (mm)
1.094 550 410 881
1.422 550 410 1.205
1.730 550 410 1.513



Manual

Download the manual of your Almada E-VENTO

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

STR-ELECTRIC-TOWEL-BLOWER

PDF Size: 7 MB
Download

D202202

D202202

Download
Bathroom Range

Valeriana

VALERIANA

Elegant bathroom radiator

The Stelrad Valeriana radiator with its curved and round tubes emphasises elegance, and with its discreet presence ensures your heating comfort. Also available with a center connection.

Why opt for a Stelrad Valeriana radiator?

  • Bathroom radiator
  • Curved round pipes
  • Available with a centre connection
  • Available in different colours

Accessories

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Product sheet

PDF Thumbnail

Dahlia & Valeriana

PDF Size: 1 MB

Download

Product photo

VALERIANA-TV

VALERIANA-TV

Image Size: 2560x3623px

Download
VALERIANA-SV

VALERIANA-SV

Image Size: 3840x3840px

Download
VALERIANA-FV

VALERIANA-FV

Image Size: 3840x3840px

Download
VALERIANA-CT-SV

VALERIANA-CT-SV

Image Size: 3840x3840px

Download
VALERIANA-BV

VALERIANA-BV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

VALERIANA-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

VALERIANA-EN

Document Size: 32 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download

Assembly instructions

PDF Thumbnail

DOC1809-1238

PDF Size: 1 MB

Download

Technical details

A bathroom is often also a place for slowing down, beauty and relaxation. The Valeriana bathroom radiator enhances this feeling of wellbeing in its own way with its aesthetic design.

This Stelrad Valeriana radiator with its curved and round tubes emphasises elegance, and with its discreet presence ensures your heating comfort. Also available with a centre connection.

Specification text

Specification text

Product: elegant bathroom radiator, also available with a centre connection
Also supplied: wall brackets, screws, plugs, air vent blind plugs and installation instructions
Connections: 4 x ½” female connection (6 x ½” if with centre connection)
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 95 °C
Conformity: in accordance with EN442
Heights: 775 | 1.181 | 1.763 mm
Number of tubes: 16 | 24 | 36
Lengths: 495 | 585 | 737 mm
Tubes: horizontal, curved, O-section, diameter 22 mm
Collector: vertical, D-section

Specification text

DOCx Thumbnail

VALERIANA-EN

Document Size: 18 KB
Download

Type overview

Type overview

Length 495 mm 585 mm 737 mm
Height
775 mm W 367 425 520
kg 6 6,89 8,4
l 3,6 4,01 4,7
m² 0,64 0,74 0,91
n 1,2455 1,2484 1,2532
1181 mm W 541 627 768
kg 9 10,23 12,3
l 5,4 6,03 7,1
m² 0,97 1,12 1,37
n 1,2578 1,2547 1,2495
1763 mm W 807 934 1.145
kg 13,4 15,26 18,4
l 7,99 8,94 10,55
m² 1,45 1,68 2,06
n 1,2703 1,2670 1,2614

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

VALERIANA-EN

Document Size: 32 KB
Download

Connection possibilities

Connection possibilities

Installation

Installation

Drillholes for the brackets

RH H1 H2
775 102 582
1181 102 988
1763 102 1570

Centre and wall distances

RL A F CW FW CTW D
495 455 236 60-75 100-115 85-100 50
585 545 326 60-75 105-120 90-105 60
737 697 478 60-75 115-130 100-115 70

D202202

D202202

Download

Heat output

Calculate your heat emission

excel Thumbnail

VALERIANA-EN

Document Size: 32 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Bathroom Range

Dahlia

DAHLIA

Traditional bathroom radiator

The Stelrad Dahlia is a traditional bathroom radiator with straight, round tubes to retain the traditional and timeless character of your bathroom. The Dahlia can also be used as a partitioning element to help you structure the space according to your needs. Also available with a center connection.

Why opt for a Stelrad Dahlia radiator?

  • Bathroom radiator
  • Straight, round tubes
  • Can be used as a partitioning element
  • Available with a centre connection
  • Available in different colours

Accessories

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Atmosphere photo

DAHLIA-AMB

DAHLIA-AMB

Image Size: 4000x4000px

Download

Product sheet

PDF Thumbnail

Dahlia & Valeriana

PDF Size: 1 MB

Download

Product photo

DAHLIA-SV-NT185

DAHLIA-SV-NT185

Image Size: 3840x3840px

Download
DAHLIA-BV-NT185

DAHLIA-BV-NT185

Image Size: 3840x3840px

Download
DAHLIA-FV-NT185

DAHLIA-FV-NT185

Image Size: 3840x3840px

Download
DAHLIA-TV-NT185-2

DAHLIA-TV-NT185-2

Image Size: 3840x2947px

Download
DAHLIA-FV

DAHLIA-FV

Image Size: 2155x4240px

Download
DAHLIA-CT-FV

DAHLIA-CT-FV

Image Size: 1920x3421px

Download
DAHLIA-TV

DAHLIA-TV

Image Size: 2560x3623px

Download
DAHLIA-SV

DAHLIA-SV

Image Size: 3840x3840px

Download
DAHLIA CT

DAHLIA CT

Image Size: 2000x4000px

Download
DAHLIA-CT

DAHLIA-CT

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

DAHLIA-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

DAHLIA-EN

Document Size: 34 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download

Assembly instructions

PDF Thumbnail

DOC1809-1238

PDF Size: 1 MB

Download

Technical details

The Dahlia is a traditional bathroom radiator that retains the timeless character of the bathroom with its simplicity and symmetry of straight, round tubes and D-shaped collectors. This radiator can also be used as a partition wall to create separate areas. Also available with a centre connection.

Specification text

Specification text

Product: the classic bathroom radiator, also available with a centre connection
Also supplied: wall brackets, screws, plugs, air vent, blind plugs and installation instructions
Connections: 4 x ½” female connection (6 x ½” if with centre connection)
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 95 °C
Conformity: in accordance with EN442
Heights: 775 | 1.181 | 1.411 | 1.763 | 1.993 mm
Number of tubes: 16 | 24 | 28 | 36 | 40
Lengths: 400 | 450 | 495 | 585 | 737 mm
Tubes: horizontal, O-section, diameter 22 mm
Collector: vertical, D-section

Specification text

DOCx Thumbnail

DAHLIA-EN

Document Size: 18 KB
Download

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

DAHLIA-EN

Document Size: 34 KB
Download

Type overview

Type overview

Length 400 mm 450 mm 495 mm 585 mm 737 mm
Height
775 mm W 367 425 520
kg 5,40 6,10 7,20
l 3,6 4,00 4,7
m² 0,64 0,74 0,91
n 1,2455 1,2484 1,2532
1181 mm W 445 496 541 627 768
kg 6,80 7,43 8,00 9,10 10,80
l 4,65 5,04 5,40 6,00 7,1
m² 0,81 0,90 0,97 1,12 1,37
n 1,2563 1,2571 1,2578 1,2547 1,2495
1411 mm W 529 590 644 746 914
kg 7,65 8,68 9,40 10,70 12,70
l 5,52 5,90 6,40 7,20 8,50
m² 0,96 1,05 1,14 1,31 1,61
n 1,2543 1,2588 1,2627 1,2596 1,2542
1763 mm W 807 934 1.145
kg 11,90 13,60 16,10
l 8,00 9,00 10,60
m² 1,45 1,68 2,06
n 1,2703 1,2670 1,2614
1993 mm W 918 1.064 1.303
kg 13,40 15,20 18,00
l 9,20 10,30 12,30
m² 1,62 1,87 2,29
n 1,2455 1,2419 1,2359

Connection possibilities

Connection possibilities

Installation

Installation



Drillholes for the brackets



RH H1 H2
775 102 582
1181 102 988
1411 102 1218
1763 102 1570
1993 102 1800



Centre and wall distances



RL A F CW FW
400 360 225 70-85 85-100
450 410 275 70-85 85-100
495 455 320 70-85 85-100
585 545 410 70-85 85-100
737 697 560 70-85 85-100

D202202

D202202

Download

Heat output

Calculate your heat emission

excel Thumbnail

DAHLIA-EN

Document Size: 34 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Standaard Range

Vertex

VERTEX

Vertical panel radiator with center connection

With its vertical assembly the Vertex not only saves space, it is also suitable for use in small spaces. The Vertex takes up a minimum of space and optimally heats the cold air next to large window sections in the kitchen or entrance hall.

Why opt for a Stelrad Vertex radiator?

  • Vertical radiator
  • Profiled front
  • Space-saving
  • Available in colour

Accessories

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Atmosphere photo

VERTEX-AMB

VERTEX-AMB

Image Size: 8640x5636px

Download

Product sheet

PDF Thumbnail

Vertex

PDF Size: 1 MB

Download

Product photo

VERTEX-TV

VERTEX-TV

Image Size: 3840x2947px

Download
VERTEX-SV-2

VERTEX-SV-2

Image Size: 1920x3421px

Download
VERTEX-SV

VERTEX-SV

Image Size: 3840x4116px

Download
VERTEX-FV-HDH

VERTEX-FV-HDH

Image Size: 942x2201px

Download
VERTEX-FV

VERTEX-FV

Image Size: 3840x4116px

Download
VERTEX-BV

VERTEX-BV

Image Size: 3840x2947px

Download

Specification text

DOCx Thumbnail

VERTEX-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

VERTEX-EN

Document Size: 34 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download

Assembly instructions

PDF Thumbnail

z4151

PDF Size: 4 MB

Download
PDF Thumbnail

z4247

PDF Size: 2 MB

Download
PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download

Certificate

ZIP Thumbnail

STR-NF-VERTEX

ZIP Size: 1 MB

Download

Technical details

Do you only have limited space to fit a radiator? The Vertex is the solution. This vertical radiator takes up a minimum of space and optimally heats the cold air next to large window section.

Specification text

Specification text

Product: vertical panel radiator with a centre connection
Finishing: side panels (only for types 11, 20, 21 and 22)
Also supplied: wall brackets, ETA safety screws and plugs, screws, plugs, air vent, blind plugs and installation instructions
Connections: 4 x ½” female connection (centre connection included). Types 20, 21 and 22 can be reversed (front/back), in which case inlet and outlet are also reversed.
Lugs: no lugs
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Quality assurance: NF
Types: 10 | 11 | 20 | 21 | 22
Heights: 1.600 | 1.800 | 2.000 | 2.200 mm
Lengths: 300 | 400 | 500 | 600 | 700 mm
Depths: 47 | 47 | 77 | 77 | 100 mm

Specification text

DOCx Thumbnail

VERTEX-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height Type 10 Type 11 Type 20 Type 21 Type 22
(mm)
1600 W 1.677 2.157 2.592 3.030 3.630
kg 30,9 42,9 63,3 71,1 80,7
l 7,2 7,2 14,4 14,1 14,1
m² 3,67 9,4 7,33 12,66 28,99
n 1,2748 1,3361 1,3202 1,3235 1,3276
1800 W 1.863 2.379 2.865 3.330 3.960
kg 34,5 48,3 71,1 80,1 88,8
l 8,4 8,4 16,2 16,5 16,2
m² 4,13 9,86 8,25 13,58 29,9
n 1,2892 1,3320 1,3135 1,3263 1,3310
2000 W 2.058 2.595 3.120 3.600 4.290
kg 38,1 53,7 78,6 89,1 96,6
l 9,3 9,3 18 18,6 18
m² 4,59 12,15 9,17 16,2 37,74
n 1,3037 1,3278 1,3068 1,3292 1,3344
2200 W 2.265 2.802 3.390 3.870 4.620
kg 42 57,9 87,6 98,4 108,9
l 10,2 10,2 20,1 20,1 20,1
m² 5,04 12,61 10,09 17,11 38,66
n 1,3182 1,3237 1,3000 1,3320 1,3379

Calculation Factor per meter length radiator at 75/65/20 °C in accordance with EN442
Characteristic equation: ф = KM x ΔTn

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

VERTEX-EN

Document Size: 34 KB
Download

Connection possibilities

Connection possibilities

Types 10 | 11 | 20 | 21 | 22

Types 20 | 21 | 22

(*) With a top connection, the radiator must be vented on both the supply and return sides. Top connection allowed provided there is a temperature difference between flow and return of maximum 20°C.

Installation

Installation

TYPE 10 TYPE 11 TYPE 20-21 TYPE 22
TYPE 10 TYPE 11-22

Drillholes for the brackets

H (mm) T10 T11 T20-22
H2 H3 H4 H2 H3 H4 H2 H3 H4
1600 170 270 1500 160 730 1300 70 740 1410
1800 170 270 1700 160 830 1500 70 840 1610
2000 170 270 1900 160 930 1700 70 940 1810
2200 170 270 2100 160 1030 1900 70 1040 2010

Distance between the centre of the radiator and the bracket

L (mm) T10 T11 T20-22
A B B B
300 45 75 50 60
400 95 125 80 110
500 145 175 130 160
600 195 225 180 210
700 245 275 230 260

D202202

D202202

Download

Heat output

Calculate your heat emission

excel Thumbnail

VERTEX-EN

Document Size: 34 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Special Range

Vertical Galva

VERTICAL GALVA

Galvanised vertical panel radiator with center connection.

Without sacrificing any heat output the vertical design of the Vertical Galva saves space. In addition, this radiator is treated with a protective galvanized coating, so it can be used without any concerns in wet areas.

Why opt for a Stelrad Vertical Galva radiator?

  • Protective galvanised coating
  • Vertical radiator
  • Space-saving
  • Available in colour

Accessories

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Product photo

VERTICAL-GALVA-TV

VERTICAL-GALVA-TV

Image Size: 3840x2947px

Download
VERTICAL-GALVA-SV-HDH

VERTICAL-GALVA-SV-HDH

Image Size: 3840x6144px

Download
VERTICAL-GALVA-SV

VERTICAL-GALVA-SV

Image Size: 3840x4116px

Download
VERTICAL-GALVA-FV

VERTICAL-GALVA-FV

Image Size: 3840x4116px

Download
VERTICAL-GALVA-BV

VERTICAL-GALVA-BV

Image Size: 3840x2947px

Download

Specification text

DOCx Thumbnail

VERTICAL-GALVA-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

VERTICAL-GALVA-EN

Document Size: 36 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download

Assembly instructions

PDF Thumbnail

z4151

PDF Size: 4 MB

Download
PDF Thumbnail

z4247

PDF Size: 2 MB

Download
PDF Thumbnail

Chrome handdoekhouder T1164XX

PDF Size: 5 MB

Download

Technical details

Without sacrificing any heat output the vertical design of the Vertical Galva saves space. In addition, this radiator is treated with a protective galvanized coating, so it can be used without any concerns in wet areas.

Specification text

Specification text

Product: vertical panel radiator with a centre connection and a protective galvanised coating
Finishing: protective galvanised coating and side panels (only for types 11, 20, 21 and 22)
Also supplied: wall brackets, ETA safety screws and plugs, screws, plugs, air vent, blind plugs and installation instructions
Connections: 4 x ½” female connection (centre connection included).
Types 20, 21 and 22 can be reversed (front/back), in which case inlet and outlet are also reversed.
Lugs: no lugs
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years, as long as the installation instructions have been followed and Stelrad’s warranty conditions have been met.
Paint process: All radiators are galvanised, degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Heat cost allocator: Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835).
Max. operating pressure: 10 bar (tested to 13 bar)
Max. operating temperature: 110 °C
Conformity: in accordance with EN442
Types: 10 | 11 | 20 | 21 | 22
Heights: 1.600 | 1.800 | 2.000 | 2.200 mm
Lengths: 300 | 400 | 500 | 600 | 700 mm
Depths: 47 | 47 | 77 | 77 | 100 mm

Specification text

DOCx Thumbnail

VERTICAL-GALVA-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height Type 10 Type 11 Type 20 Type 21 Type 22
(mm)
1600 W 1.677 2.157 2.592 3.030 3.630
kg 30,9 42,9 63,3 71,1 80,7
l 7,2 7,2 14,4 14,1 14,1
m² 3,67 9,4 7,33 12,66 28,99
n 1,2748 1,3361 1,3202 1,3235 1,3276
1800 W 1.863 2.379 2.865 3.330 3.960
kg 34,5 48,3 71,1 80,1 88,8
l 8,4 8,4 16,2 16,5 16,2
m² 4,13 9,86 8,25 13,58 29,9
n 1,2892 1,3320 1,3135 1,3263 1,3310
2000 W 2.058 2.595 3.120 3.600 4.290
kg 38,1 53,7 78,6 89,1 96,6
l 9,3 9,3 18 18,6 18
m² 4,59 12,15 9,17 16,2 37,74
n 1,3037 1,3278 1,3068 1,3292 1,3344
2200 W 2.265 2.802 3.390 3.870 4.620
kg 42 57,9 87,6 98,4 108,9
l 10,2 10,2 20,1 20,1 20,1
m² 5,04 12,61 10,09 17,11 38,66
n 1,3182 1,3237 1,3000 1,3320 1,3379

Calculation Factor per meter length radiator at 75/65/20 °C in accordance with EN442
Characteristic equation: ф = KM x ΔTn

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

VERTICAL-GALVA-EN

Document Size: 36 KB
Download

Connection possibilities

Connection possibilities

Types 10 | 11 | 20 | 21 | 22

Types 20 | 21 | 22

(*) With a top connection, the radiator must be vented on both the supply and return sides. Top connection allowed provided there is a temperature difference between flow and return of maximum 20°C.

Installation

Installation

TYPE 10 TYPE 11 TYPE 20-21 TYPE 22
TYPE 10 TYPE 11-22

Drillholes for the brackets

H (mm) T10 T11 T20-22
H2 H3 H4 H2 H3 H4 H2 H3 H4
1600 170 270 1500 160 730 1300 70 740 1410
1800 170 270 1700 160 830 1500 70 840 1610
2000 170 270 1900 160 930 1700 70 940 1810
2200 170 270 2100 160 1030 1900 70 1040 2010

Distance between the centre of the radiator and the bracket

L (mm) T10 T11 T20-22
A B B B
300 45 75 50 60
400 95 125 80 110
500 145 175 130 160
600 195 225 180 210
700 245 275 230 260

D202202

D202202

Download

Heat output

Calculate your heat emission

excel Thumbnail

VERTICAL-GALVA-EN

Document Size: 36 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Bathroom Range, Electric Range

Dahlia E

DAHLIA E

Carefree and eco-friendly heating with electric radiators

A radiator that’s always ready, in every season… always convenient in the bathroom. Whether you want to preheat a towel, or heat the room temperature to an enjoyable level, you can always rely on the Dahlia E.

Dahlia E, a smart heat source!

The Dahlia E radiator is fully programmable and even shuts down when a window is opened, making it very energy-efficient. Its intelligent control unit ensures it complies with the new and strict EcoDesign regulation, which is valid since January 2018.

The Dahlia E has been prefilled with heating fluid and is completely Plug & Play. You just have to mount the radiator, connect the electricity and enjoy your careless warmth. Furthermore the easy to use and programmable thermostat features among others a boost button to heat your towels or bathroom in the quickest time possible.

Key features:

  • Ready for assembly and connection
  • Backlit digital display
  • Integrated week programming
  • Open window detection
  • Display of the energy consumption in kWh
  • IR-receiver for the optional remote control
  • Boost button
  • Compliant with EcoDesign

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 18 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download

Product sheet

PDF Thumbnail

Dahlia E-VENTO

PDF Size: 782 KB

Download

Product photo

DAHLIA-E-SV_cmyk_zonder afstandsbediening

DAHLIA-E-SV_cmyk_zonder afstandsbediening

Image Size: 3543x7036px

Download
DAHLIA-E-SV

DAHLIA-E-SV

Image Size: 3543x7036px

Download
DAHLIA-E-REMOTE

DAHLIA-E-REMOTE

Image Size: 3884x2864px

Download
DAHLIA-E-FV

DAHLIA-E-FV

Image Size: 2597x5824px

Download
DAHLIA-E-BV

DAHLIA-E-BV

Image Size: 4724x6451px

Download

Specification text

DOCx Thumbnail

DAHLIA-E-EN

Document Size: 18 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

z5006

PDF Size: 2 MB

Download
PDF Thumbnail

Dahlia E without plug

PDF Size: 3 MB

Download
PDF Thumbnail

Dahlia E with plug

PDF Size: 3 MB

Download

Technical data

With the electrical version of the Dahlia radiator a new era is upon us. Nowadays alternative energy sources also get more interest next to the traditional hydraulic heating. The Dahlia E is Stelrad’s answer to this evolution.

Specification text

Specification text

Product: Electrical classic bathroom radiator
Pre-installed: Prefilled with heating liquid and including mounted thermostat. Available as a version with 0,8 m insulated cable without plug and as a version with 1,2 m insulated cable with plug.
Also supplied: Brackets, screws, plugs and manual
Control: Operated via integrated thermostat with weekly programming, open window detection and boost function. IR receiver for the optional remote control.
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated, primed and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Colour controller: White for all radiators in Stelrad white 9016, A9010, A9003, NT110, NT120, SN110.
Grey for all other colours.
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 230V ~50Hz, IP44, Class II
Heights: 775 | 1.181 | 1.411 | 1.763 mm
Number of tubes: 16 | 24 | 28 | 36
Lengths: 400 | 450 | 495 | 585 mm
Output: 400 | 500 | 600 | 700 | 900 | 1.000 W
Tubes: horizontal, O-section, diameter of 22 mm

Specification text

DOCx Thumbnail

DAHLIA-E-EN

Document Size: 18 KB
Download

Type overview

Art. nr.
without plug		 Art. nr.
with plug		 Height
(mm.)		 Height
(mm. incl. Thermostat)		 Length
(mm.)		 Number of tubes Weight Heat outputs
(watt)
0184A0002 0184C0002 775 860 585 16 10,45 400
0184A0016 0184C0016 1181 1266 400 24 12,00 400
0184A0017 0184C0017 1181 1266 450 24 13,00 500
0184A0004 0184C0004 1181 1266 495 24 13,88 600
0184A0005 0184C0005 1181 1266 585 24 15,60 700
0184A0018 0184C0018 1411 1496 400 28 14,00 500
0184A0019 0184C0019 1411 1496 450 28 15,50 600
0184A0010 0184C0010 1411 1496 495 28 16,33 700
0184A0011 0184C0011 1411 1496 585 28 18,39 900
0184A0007 0184C0007 1763 1848 495 36 20,59 1000
0184A0008 0184C0008 1763 1848 585 36 23,23 1000

Intelligent thermostat

Intelligent Thermostat

• Electronic PID control with microprocessor.
• A safety feature prevents the room temperature from getting too high (Boost mode).
• Sound signal when changing between standby and active mode.
• Ergonomic: Backlit display which is easy and intuitive to set.
• Boost: Adjustable between 10 and 90 minutes.
• Infrared remote control (optional): Supplied with a wall mount.
• Energy consumption indicator.
• Open window detection: Automatically switching to frost protection mode when the device detects a significant drop in temperature.
• 7 Day program: Possibility to assign 5 different profiles to each day.
• 6 Different factory presets: Auto/Comfort/Eco/Boost/Frost protection/Standby
• Child anti-tamper: The control panel can be locked.
• Active memory: Permanent backup of the settings, date and time up to 3 hours.

Manual

Download the manual of your Dahlia E without or with plug

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

z5006

PDF Size: 2 MB
Download

PDF Thumbnail

Dahlia E without plug

PDF Size: 3 MB
Download

PDF Thumbnail

Dahlia E with plug

PDF Size: 3 MB
Download

D202202

D202202

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Bathroom Range, Electric Range

Dahlia E-VENTO

DAHLIA E-VENTO

Electric radiators with blower – Fast, carefree and ecological heating

The electric Dahlia is now also available with a blower. This Dahlia E-VENTO is particularly powerful with an additional 950 watts. Furthermore, the blower provides immediate heating, which means that the room is brought very quickly to the desired temperature. Heating your bathroom and towels quickly and ecologically has never been easier!

Dahlia E-VENTO, a smart heat source!

The Dahlia E-VENTO is fully programmable and switches off even when the window is open, making it particularly energy efficient. His intelligent control means that he effortlessly meets the new and strict EcoDesign regulation, valid since January 2018. The Dahlia E-VENTO is pre-filled with heating fluid and works completely plug & play. All you have to do is mount the radiator and provide it with power to enjoy the heat without worry. Furthermore, the user-friendly, programmable thermostat includes a boost button that heats your towel or bathroom in the shortest possible time.

Key features:

  • Pre-mounted 950 watt blower
  • Ready for assembly and connection
  • Backlit digital display
  • Integrated week programming
  • Self-learning programming that adapts to your lifestyle
  • Open window and presence detection
  • Display of the energy consumption in kWh
  • RF-receiver for the optional remote control
  • Boost button
  • Compliant with EcoDesign

Accessories

Downloads

Brochure

PDF Thumbnail

Electric

PDF Size: 18 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download

Atmosphere photo

DAHLIA-E-VENTO-AMB

DAHLIA-E-VENTO-AMB

Image Size: 5616x3744px

Download

Product sheet

PDF Thumbnail

Dahlia E-VENTO

PDF Size: 782 KB

Download

Product photo

T5003

T5003

Image Size: 3228x2592px

Download
DAHLIA-E-VENTO-SV-2

DAHLIA-E-VENTO-SV-2

Image Size: 3840x6144px

Download
DAHLIA-E-VENTO-SV

DAHLIA-E-VENTO-SV

Image Size: 3840x6144px

Download
DAHLIA-E-VENTO-FV

DAHLIA-E-VENTO-FV

Image Size: 3840x6144px

Download
DAHLIA-E-VENTO-BV

DAHLIA-E-VENTO-BV

Image Size: 3840x2160px

Download

Specification text

DOCx Thumbnail

DAHLIA-E-VENTO-EN

Document Size: 19 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

E-VENTO-MANUAL-EN

PDF Size: 21 MB

Download

Technical data

The Dahlia E-VENTO is an electric radiator with integrated blower unit that provides extra heat emission (950 watt). After the simple assembly and insertion of the plug, the radiator is ready for use and you can enjoy a pleasant heat within a few minutes.

Specification text

Specification text

Product: electric classic bathroom radiator with blower
Pre-mounted: Pre-filled with heating fluid. Equipped with thermostat, 950 watt PTC blower and 1,2 m insulated cable with plug.
Also supplied: Brackets, screws, plugs and manual.
Control: Control via integrated thermostat with automatic self-learning weekly programming, open window detection, presence detection and boost function. RF receiver for optional remote control.
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: type – height – length.
Warranty: 10 years for the radiator and 2 years for the electrical components, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Colour blower: White for all radiators in Stelrad white 9016, A9010, A9003, NT110, NT120, SN110.
Grey for all other colours.
Conformity: EcoDesign 2018 (EU Regulation 2015/1188)
Technical data: Voltage 220-240V ~50Hz, IPX4, Class II
Heights: 775 | 1.181 | 1.411 | 1.763 mm
Number of tubes: 16 | 24 | 28 | 36
Lengths: 495 | 585 mm
Output: 1.350 | 1.550 | 1.650 | 1.850 | 1.950 W

Specification text

DOCx Thumbnail

DAHLIA-E-VENTO-EN

Document Size: 19 KB
Download

Type overview

Height
(mm.)		 Height
(mm. incl. Thermostat)		 Length
(mm.)		 Number of tubes Weight Heat output radiator
including blower (watt)
775 847 585 16 12,75 400+950
1181 1253 495 24 16,18 600+950
1181 1253 585 24 17,90 700+950
1411 1483 495 28 18,63 700+950
1411 1483 585 28 20,69 900+950
1763 1835 495 36 22,89 1000+950
1763 1835 585 36 25,53 1000+950

Intelligent Thermostat

Intelligent Thermostat

• Electronic PID control with microprocessor.
• Ergonomic: Backlit display which is easy and intuitive to set.
• 6 Different factory presets: Auto (Self-learning) / Comfort / Eco / Boost / Frost protection / Standby
• 7 Day program: Possibility to assign 1 of 5 different profiles to each day.
• Energy consumption indicator on display.
• Open window detection: Automatically switching to frost protection mode when the device detects a significant drop in temperature.
• Self-learning function: the device can get to know your needs and adjust its programs to you by means of presence detection.
• Boost: Adjustable between 5 and 90 minutes in 5 minute intervals.
• A safety feature prevents the room temperature from getting too high (Boost mode).
• Child anti-tamper: The control panel can be locked.
• Active memory: Permanent backup of the settings, date and time up to 16 hours.
• Sound signal when changing between standby and active mode.
• Radio frequency remote control (optional).

Manual

Download the manual of your Dahlia E-VENTO

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB
Download

PDF Thumbnail

E-VENTO-MANUAL-EN

PDF Size: 21 MB
Download

D202202

D202202

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Bathroom Range, Design Range

Gilia Double

GILIA DOUBLE

Vertical design radiator with round tubes

Gilia Double combines straightforward design and outstanding performance to provide the entire kitchen or bathroom with unequalled comfort. Its useful recesses offer lots of options for towels, which will be warm in no time. This modern classic is available in several formats and colours, and can therefore be matched with almost any design.

Why opt for a Stelrad Gilia Double radiator?

  • Vertical design radiator
  • Elevated heat emission
  • Round shape of the horizontal tubes
  • Available with a centre connection
  • Available in colour

Accessories

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Product photo

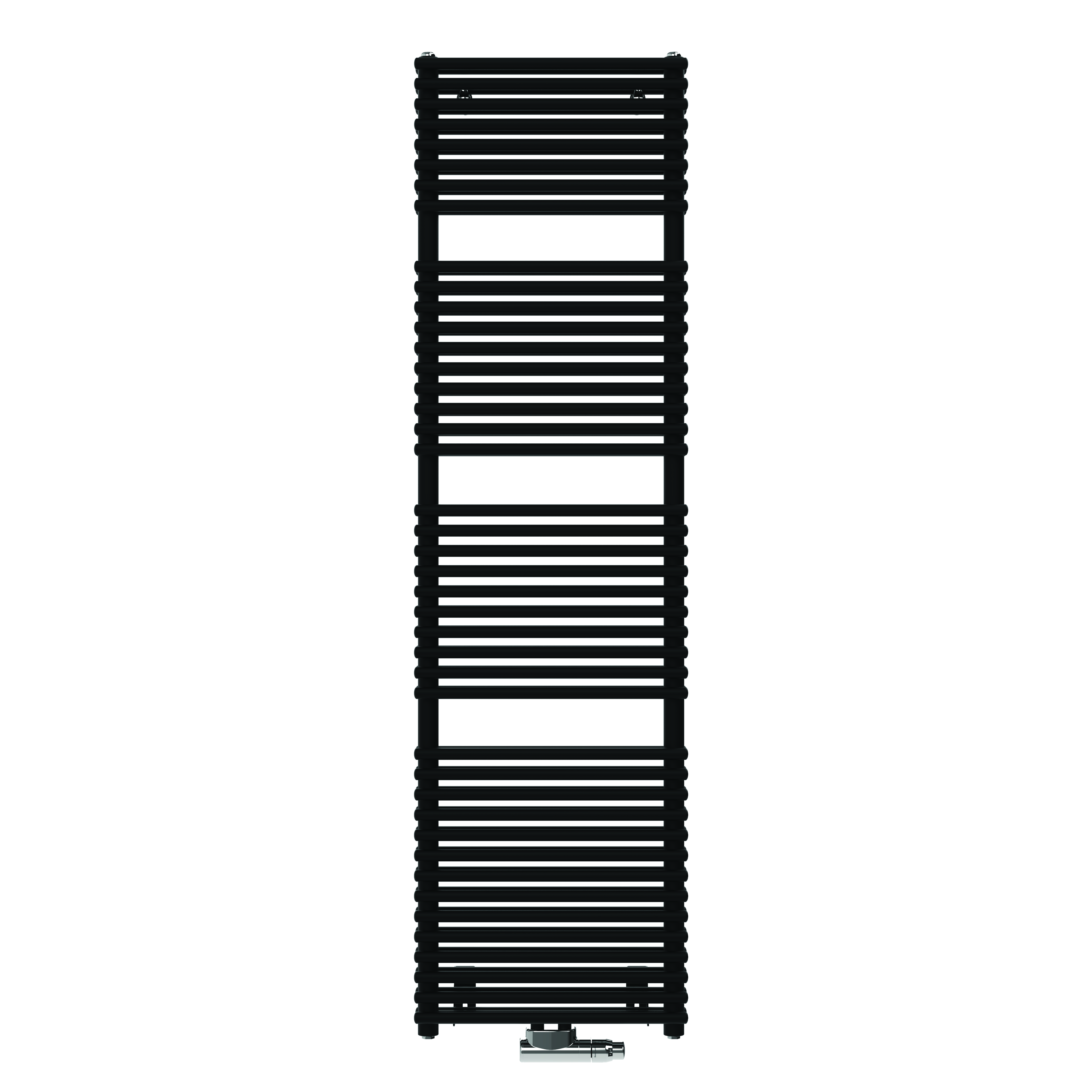

GILIA-DOUBLE-NT180-TV

GILIA-DOUBLE-NT180-TV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-NT180-SV

GILIA-DOUBLE-NT180-SV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-NT180-FV

GILIA-DOUBLE-NT180-FV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-NT180-BV

GILIA-DOUBLE-NT180-BV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-FV

GILIA-DOUBLE-FV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-BV

GILIA-DOUBLE-BV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-TV

GILIA-DOUBLE-TV

Image Size: 3840x3840px

Download
GILIA-DOUBLE-SV

GILIA-DOUBLE-SV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

GILIA-DOUBLE-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

GILIA-DOUBLE-EN

Document Size: 33 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download

Assembly instructions

PDF Thumbnail

z4338

PDF Size: 4 MB

Download

Technical details

The double version for unmatched comfort.

Specification text

Specification text

Product: Gilia Double, vertical round tube-on-tube design radiator
Also supplied: 4 white brackets (in chrome for any other radiator colour), screws, plugs, design air vent and design blind plug, blind plugs and installation instructions
Connections: 4 x ½” female connection (centre connection included)
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: height – length.
Warranty: 10  years, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Max. operating pressure: 6 bar (tested to 7,8 bar)
Max. operating temperature: 95 °C
Conformity: in accordance with EN442
Heights: 1.199 | 1.495 | 1.791 | 2.013 mm
Number of tubes: 56 | 68 | 84 | 96
Lengths: 500 | 600 | 750 | 900 mm
Tubes: horizontal, O-section, diameter of 22 mm
Collector: vertical, O-section, diameter 38 mm

Specification text

DOCx Thumbnail

GILIA-DOUBLE-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height (mm) Length (mm) 500 600 750 900
1199 W 963 1.154 1.441
kg 21,2 24,6 29,8
l 11,2 13 15,6
m² 2,26 2,65 3,23
n 1,2287 1,2198 1,2066
1495 W 1.179 1.408 1.751
kg 25,7 29,9 36,2
l 13,45 15,56 18,73
m² 2,76 3,23 3,93
n 1,2409 1,2271 1,2063
1791 W 1.402 1.670 2.073 2.475
kg 32,3 37,6 45,5 52,5
l 16 18,5 22,3 27,04
m² 3,39 3,97 4,85 5,72
n 1,243 1,229 1,2079 1,1869
2013 W 1.576 1.874 2.321 2.768
kg 36,1 42 50,8 59,63
l 19,1 22,1 26,7 31,18
m² 3,87 4,53 5,53 6,53
n 1,2446 1,2304 1,2091 1,1879

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

GILIA-DOUBLE-EN

Document Size: 33 KB
Download

Connection possibilities

Connection possibilities

Installation

Installation

Top and side viewGILIA DOUBLE top view - side view Height: 1199 mmGILIA DOUBLE Height 1199 Height: 1495 mmGILIA DOUBLE Height 1495
Height: 1791 mmGILIA DOUBLE Height 1791 Height: 2013 mmGILIA DOUBLE Height 2013

D202202

D202202

Download

Heat output

Calculate your heat emission

excel Thumbnail

GILIA-DOUBLE-EN

Document Size: 33 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
Bathroom Range, Design Range

Gilia Single

GILIA SINGLE

Vertical design radiator with round tubes

The Gilia Single is a solid and timeless design for kitchens and bathrooms. With its horizontal play of lines this radiator adds rhythm to any room. Thanks to the soft edges and practical openings Gilia Single is just what you need to hang up towels or items of clothing. Gilia Single ensures a high heat radiation and can be delivered in a variety of colours.

Why opt for a Stelrad Gilia Single radiator?

  • Vertical design radiator
  • Elevated heat emission
  • Round shape of the horizontal tubes
  • Available with a centre connection
  • Available in colour

Accessories

Downloads

Brochure

PDF Thumbnail

Hahnblöcke / Connectors

PDF Size: 3 MB

Download
PDF Thumbnail

Colour your warmth

PDF Size: 327 KB

Download
PDF Thumbnail

Consumer brochure

PDF Size: 4 MB

Download

Technical manual

PDF Thumbnail

Technical manual

PDF Size: 16 MB

Download
PDF Thumbnail

STR-IN-OUT-EN

PDF Size: 2 MB

Download
PDF Thumbnail

CORRECTION-FACTORS

PDF Size: 97 KB

Download

Atmosphere photo

Image Size: 4790x3352px

Download

Product photo

GILIA-SINGLE-BV-NT180

GILIA-SINGLE-BV-NT180

Image Size: 3840x3840px

Download
GILIA-SINGLE-TV-NT180

GILIA-SINGLE-TV-NT180

Image Size: 3840x3840px

Download
GILIA-SINGLE-FV-NT180

GILIA-SINGLE-FV-NT180

Image Size: 3840x3840px

Download
GILIA-SINGLE-SV-NT180

GILIA-SINGLE-SV-NT180

Image Size: 3840x3840px

Download
GILIA-SINGLE-SV

GILIA-SINGLE-SV

Image Size: 3840x3840px

Download
GILIA-SINGLE-BV

GILIA-SINGLE-BV

Image Size: 3840x3840px

Download
GILIA-SINGLE-FV

GILIA-SINGLE-FV

Image Size: 3840x3840px

Download
GILIA-SINGLE-TV

GILIA-SINGLE-TV

Image Size: 3840x3840px

Download

Specification text

DOCx Thumbnail

GILIA-SINGLE-EN

Document Size: 18 KB

Download

Calculate your heat emission

excel Thumbnail

GILIA-SINGLE-EN

Document Size: 34 KB

Download

Manual

PDF Thumbnail

STR-MAINTENANCE-CLEANING

PDF Size: 1 MB

Download
PDF Thumbnail

Bleeding of radiators

PDF Size: 93 KB

Download

Assembly instructions

PDF Thumbnail

z4337

PDF Size: 2 MB

Download

Technical details

A contemporary and slick design for bathroom and kitchen.

Specification text

Specification text

Product: Gilia Single, vertical round tube-on-tube design radiator
Also supplied: 4 white brackets (in chrome for any other radiator colour), screws, plugs, air vent, blind plugs and installation instructions
Connections: 4 x ½” female connection (centre connection included)
Packaging: Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator’s characteristics are shown on the label: height – length.
Warranty: 10  years, as long as the installation instructions have been followed, Stelrad’s warranty conditions have been met and the radiator is installed outside the splash area.
Paint process: All radiators are degreased, phosphated and powder-coated in Stelrad white 9016 as standard.
Colours: Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible
Max. operating pressure: 6 bar (tested to 7,8 bar)
Max. operating temperature: 95 °C
Conformity: in accordance with EN442
Heights: 1.199 | 1.495 | 1.791 | 2.013 mm
Number of tubes: 28 | 34 | 42 | 48
Lengths: 500 | 600 | 750 | 900 mm
Tubes: horizontal, O-section, diameter 22 mm
Collector: vertical, O-section, diameter 38 mm

Specification text

DOCx Thumbnail

GILIA-SINGLE-EN

Document Size: 18 KB
Download

Type overview

Type overview

Height (mm) Length (mm) 500 600 750 900
1199 W 675 794 972
kg 11,8 13,5 16,1
l 6,3 7,1 8,3
m² 1,28 1,47 1,76
n 1,2026 1,1882 1,1667
1495 W 832 976 1.192
kg 14,18 16,35 19,59
l 7,8 8,8 10,3
m² 1,56 1,79 2,15
n 1,2071 1,1983 1,1852
1791 W 986 1.158 1.416 1.673
kg 18,6 21,3 25,2 28,21
l 9,7 11 12,9 14,12
m² 1,91 2,2 2,64 3,07
n 1,2285 1,2067 1,1739 1,1413
2013 W 1.099 1.294 1.586 1.878
kg 20,4 23,4 27,8 32,24
l 10,7 12 14,1 16,14
m² 2,18 2,51 3,01 3,5
n 1,2447 1,2131 1,1657 1,1182

Heat Output & Dimensions

Heat output and dimensions

Calculate your heat emission

excel Thumbnail

GILIA-SINGLE-EN

Document Size: 34 KB
Download

Connection possibilities

Connection possibilities

Installation

Installation

Top and side viewGILIA DOUBLE top view - side view Height: 1199 mmGILIA DOUBLE Height 1199 Height: 1495 mmGILIA DOUBLE Height 1495
Height: 1791 mmGILIA DOUBLE Height 1791 Height: 2013 mmGILIA DOUBLE Height 2013

D202202

D202202

Download

Heat output

Calculate your heat emission

excel Thumbnail

GILIA-SINGLE-EN

Document Size: 34 KB

Download

Choose your colour

Warmth is essential for creating a cosy home. As is an interior that you feel good in. With Stelrad you can now opt for colourful warmth.

NT110
Papyrus white		 NT120
Pearl white		 NT130
Champagne		 NT140
Beige		 NT160
Pebble grey		 NT170
Quartz grey		 NT180
Soft black
ML110
Dove grey		 ML120
Titanium grey		 ML134
Blue grey		 ML140
Granite		 ML150
Cappuccino		 ML160
Terra brown		 ML170
Graphite black
SN110
Cream white		 SN120
Cream		 SN130
Mocca		 SN140
Bordeaux		 SN150
Sepia		 SN160
Pale blue		 SN170
Black
A1004
Golden yellow		 A2003
Pastel orange		 A3002
Carmine red		 A5002
Ultramarine blue		 A6018
Yellow green		 A7001
Silver grey		 A7011
Iron grey
A7016
Antracite grey		 A7030
Stone grey		 A7035
Light grey		 A8017
Chocolate brown		 A9003
Signal white		 A9005
Jet black		 A9010
Pure white

The above colour palette can be further expanded with a multitude of RAL colours. The colours depicted are indicative only. For an accurate indication of the colour, you can request a free colour sample.
